How to Fix P0420 & P0430 Codes on a GX470 (Without Replacing the Catalytic Converter)

TL;DR: P0420 and P0430 codes after exhaust modifications are almost always caused by the rear (downstream) O2 sensor reading too much oxygen, not a failed catalytic converter. The fix on 95% of 2UZ-FE builds is a mini cat O2 sensor spacer installed on the rear sensor — it isolates the sensor from direct exhaust flow so it reads what the ECU expects. Install takes 10 minutes per bank.

What P0420 and P0430 actually mean

Both codes are catalyst efficiency codes:

  • P0420 — Catalyst System Efficiency Below Threshold (Bank 1)
  • P0430 — Catalyst System Efficiency Below Threshold (Bank 2)

The ECU watches two oxygen sensors per bank: one upstream (in front of the cat) and one downstream (after the cat). On a healthy catalytic converter, the upstream sensor sees lots of oxygen variation as the engine cycles, while the downstream sensor sees almost no variation — because a working cat smooths everything out.

When the downstream sensor starts mirroring the upstream sensor too closely, the ECU concludes the cat isn't doing its job and trips P0420 or P0430.

Why you're getting these codes after exhaust mods

If your 2UZ-FE GX470 or 4Runner started throwing P0420/P0430 right after you installed headers, a Y-pipe, or a high-flow cat, the cat isn't actually failing. What's happening:

  1. Faster exhaust flow. Aftermarket headers and freer-flowing exhaust push gases past the downstream O2 sensor faster than the OEM cat assembly was designed for. Less residence time in the cat = more raw exhaust hitting the rear sensor.
  2. High-flow or smaller cats. Many aftermarket cats are physically shorter or less dense than OEM. They work, but the rear sensor sees more oxygen swing than the ECU's narrow tolerance allows.
  3. Aged OEM cats. A 20-year-old GX470 cat that was borderline-passing suddenly fails the test once flow rates change.
  4. Catless or test-pipe setups. Obvious, but worth noting — no cat means no smoothing, so P0420/P0430 trips immediately.

The cat itself might still be perfectly functional. The problem is that the sensor is now seeing exhaust it wasn't tuned to see.

The fix: a mini cat O2 sensor spacer

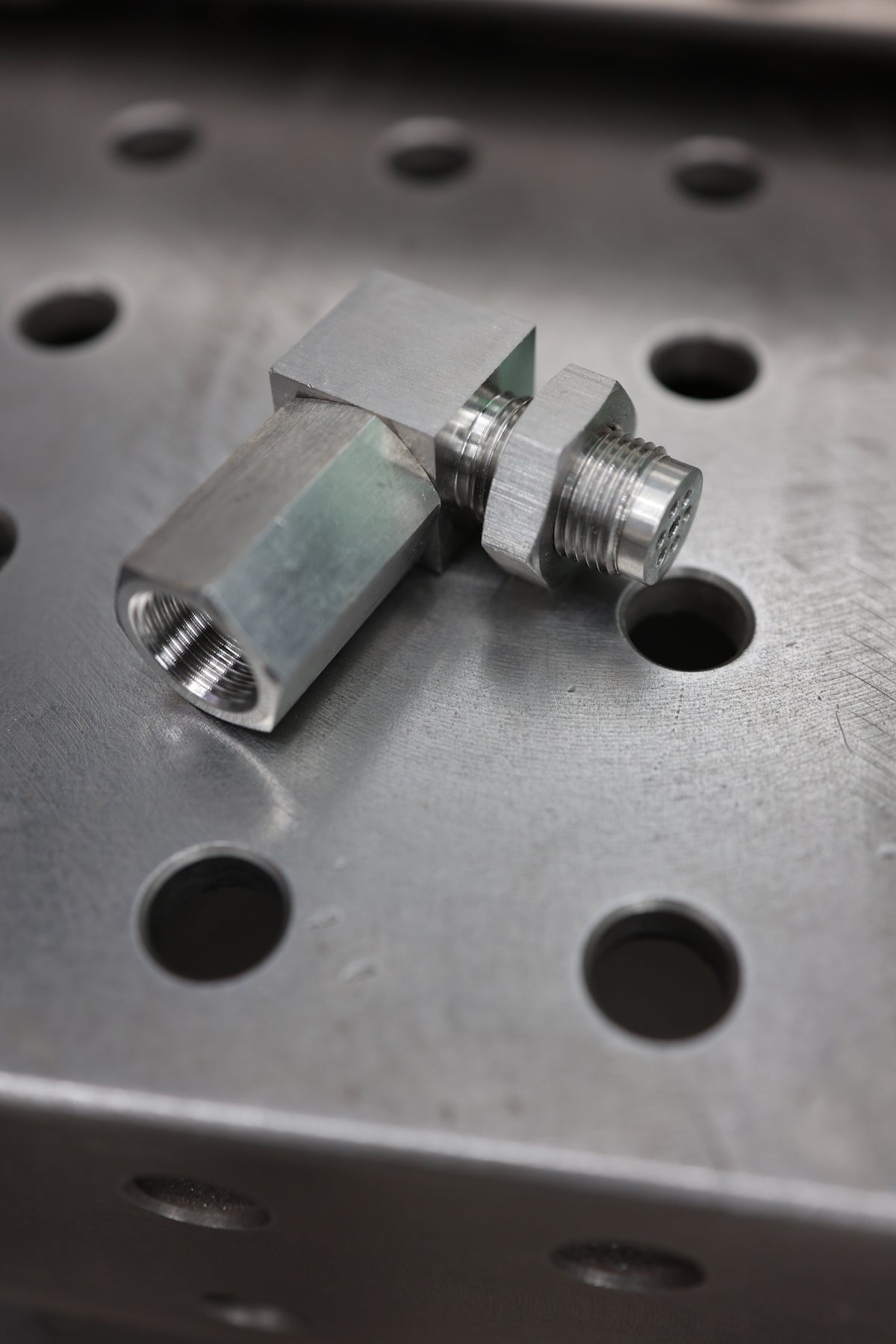

A mini cat O2 spacer is a small threaded fitting (M18x1.5 on the 2UZ-FE) that goes between the rear O2 sensor and the exhaust bung. Inside the spacer is a tiny pocket of catalyst material. The sensor screws into the spacer instead of directly into the pipe.

What that does:

  • Slows the exhaust gases reaching the sensor tip
  • Lets the mini catalyst do final cleanup of whatever the main cat missed
  • Gives the ECU the signal it expects from a healthy system — minimal oxygen variation

The ECU sees a happy rear sensor, the code clears, and the light stays off. The car drives identically — no power loss, no fuel economy hit, no fake fix.

This is the same principle as the old "non-fouler" tricks people used in the 90s, but engineered properly with the right thread pitch, internal volume, and catalyst material. Our Mini Catalytic Converter O2 Sensor Spacer is machined from 304 stainless and ships with the right thread for the 2UZ-FE platform.

What codes the spacer covers

If your scan tool reads any of these, a rear-sensor spacer is the right move:

  • P0420, P0421, P0422, P0423, P0424 (Bank 1)
  • P0430, P0431, P0432, P0433, P0434 (Bank 2)

When the spacer WON'T work

Be honest with yourself before ordering one:

  • If your cat is physically gone or shattered internally. The spacer adds a small amount of catalyst, but it can't replace a destroyed main cat. If you drove for thousands of miles with a rich tune or a misfire, the cat is probably toast — replace it first.
  • If your O2 sensor is bad. A failing sensor reads garbage no matter what's around it. Test the sensor with a scan tool first — the upstream reading should swing between roughly 0.1V and 0.9V; the downstream should sit around 0.4–0.6V when warm. If the sensor itself is dead, replace it before adding a spacer.
  • If you have an active misfire. Misfires dump unburned fuel into the exhaust. That'll trip P0420 too, but no spacer fixes a misfire. Diagnose ignition first.
  • If you live in an emissions-test state and need to pass tailpipe sniff tests. The spacer fixes the OBD readiness code but doesn't add meaningful emissions reduction. It's designed for off-road and emissions-exempt vehicles.

Install: 10 minutes per bank

You need two spacers for a V8 — one per bank. Tools: 22mm O2 sensor socket (or 22mm open-end wrench), penetrating oil, and 15 minutes.

  1. Let the exhaust cool completely. Don't even think about it after a drive.
  2. Spray the rear O2 sensor threads with penetrating oil. Wait 5 minutes.
  3. Unplug the rear O2 sensor harness. Rear only — the upstream sensor stays where it is.
  4. Unscrew the rear O2 sensor from the exhaust bung. It might fight you on the first quarter turn — that's normal.
  5. Thread the mini cat spacer into the bung. Snug it down — don't gorilla it. About 30 ft-lb.
  6. Thread the O2 sensor into the spacer. Same torque.
  7. Plug the harness back in.
  8. Repeat on the other bank.
  9. Clear the codes with a scan tool or disconnect the battery for 10 minutes.
  10. Drive a 50–100 mile mixed cycle (city + highway). The ECU needs that to complete its readiness monitor.

If the codes come back inside that first 100 miles, recheck for the disqualifiers in the section above — especially a failing sensor or a misfire.

Why this matters for emissions-modified builds

If you've installed our 2UZ-FE mid-length headers or any aftermarket Y-pipe on a GX470 or 4th gen V8 4Runner, you're almost certainly going to see P0420 or P0430 within the first month. It's not a defect — it's the ECU being too conservative with its tolerance window. A pair of mini cat O2 spacers is the cheapest and most reliable fix in the aftermarket, and it doesn't undo any of the airflow gains you just paid for.

Questions about whether the spacer will work on your specific build? Call the shop at (309) 256-6993 or send us a message. We'd rather talk you out of buying something that won't help than sell you a part that doesn't solve your problem.
