2023 Lexus GX460 Auxiliary Fuel Tank System 18 Gallon
Helivue Design
This part ships directly from Helivue Design, not from our shop. Fitment questions? Call the shop at (309) 256-6993.
- Made in the USA
- Lifetime warranty
Description
The last year GX460, set up to go the distance

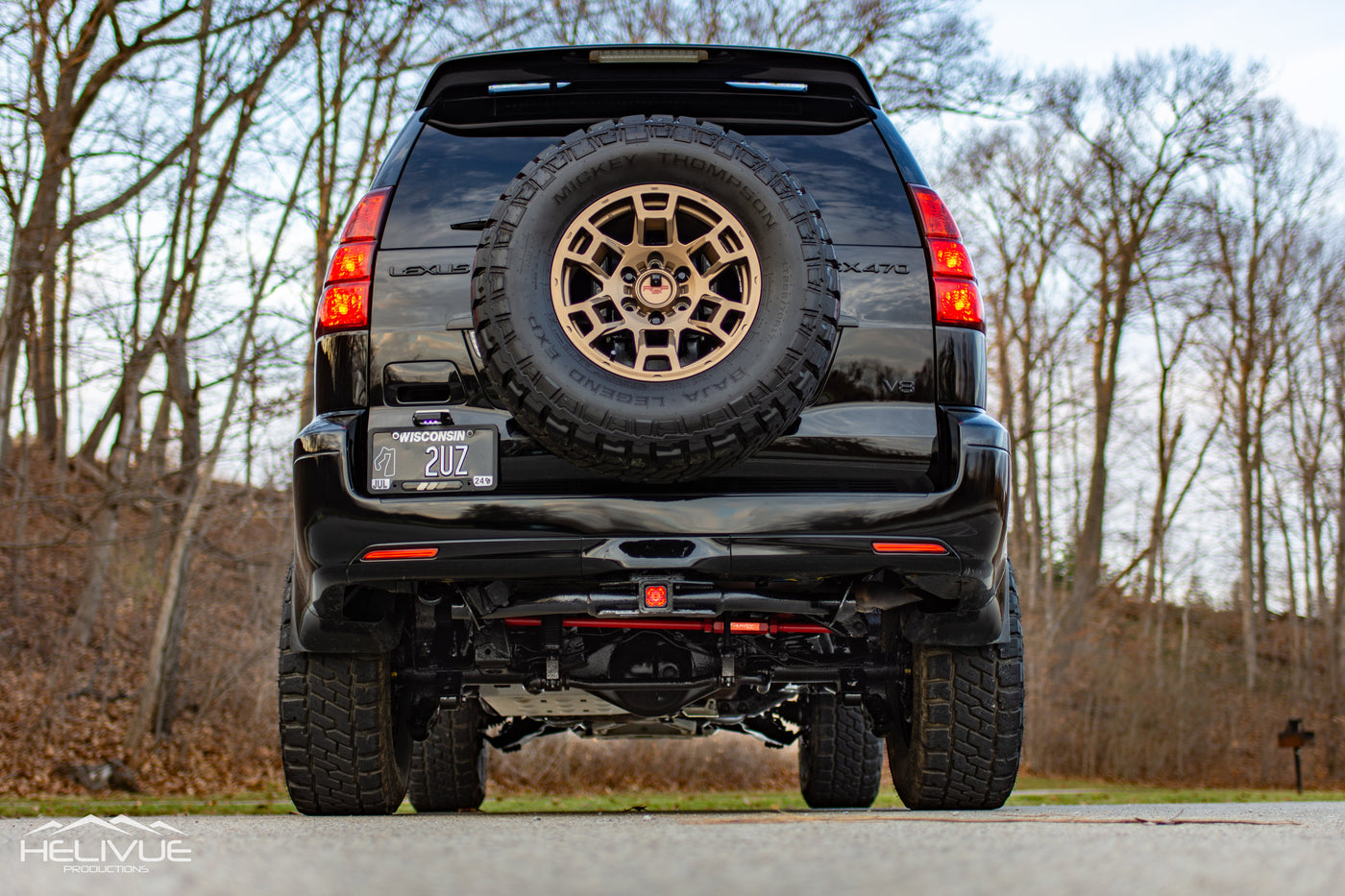

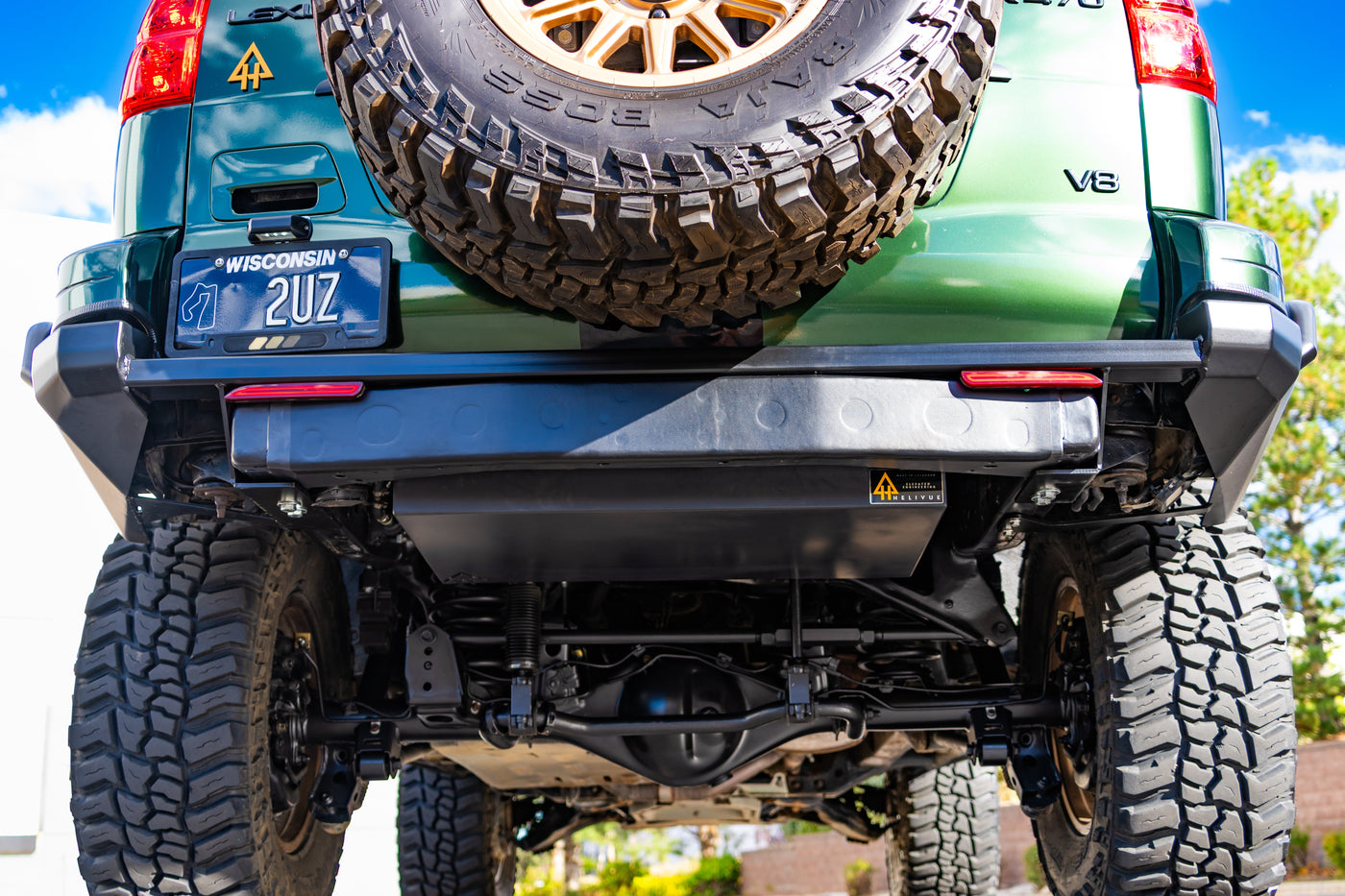

Eighteen extra gallons on a 2023 GX460, mounted high and tucked above the bumper line. KDSS, factory air ride and your Class 4 receiver hitch all stay exactly as they are, and the factory evap system stays in place.
One filler, two tanks

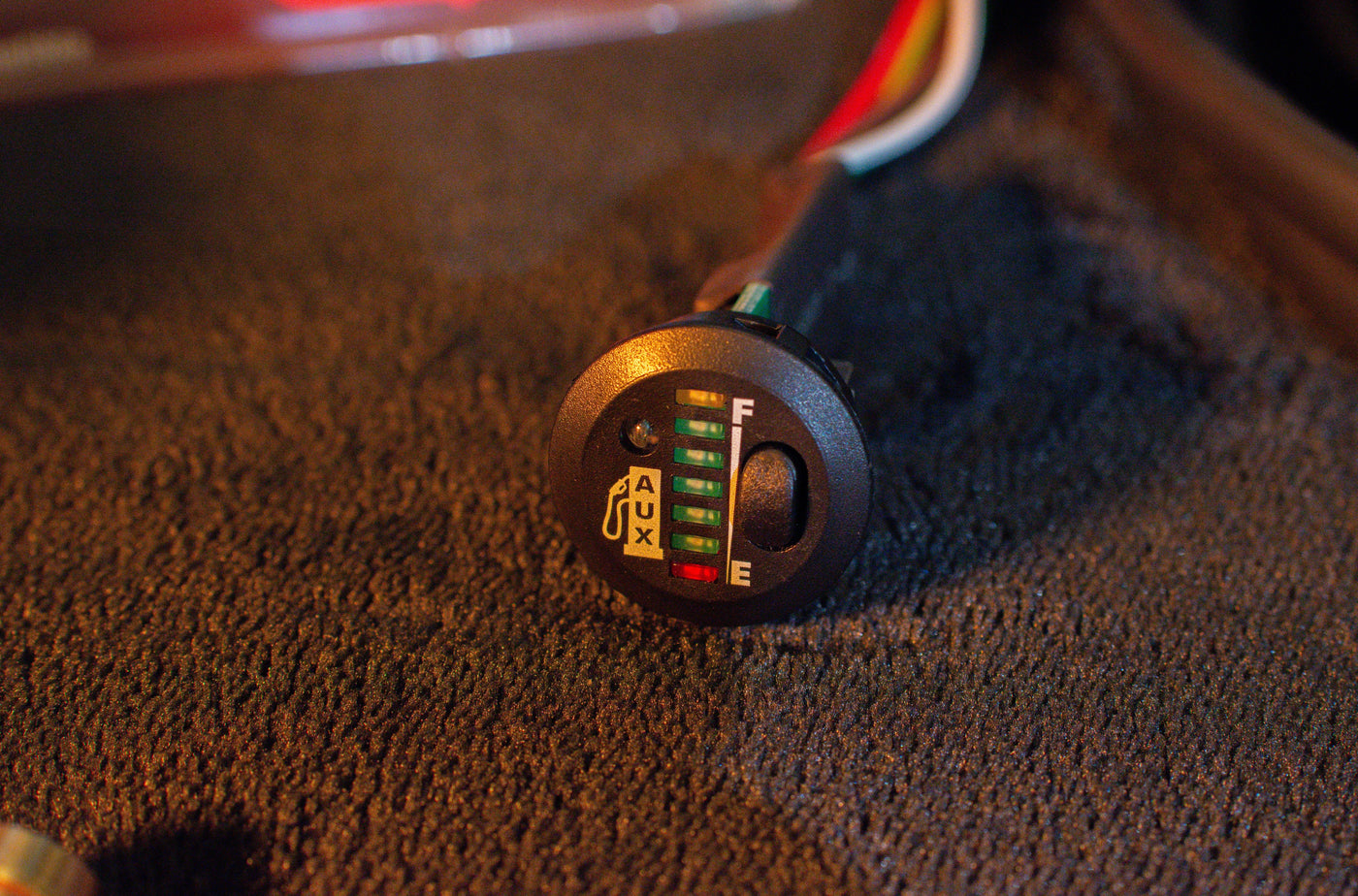

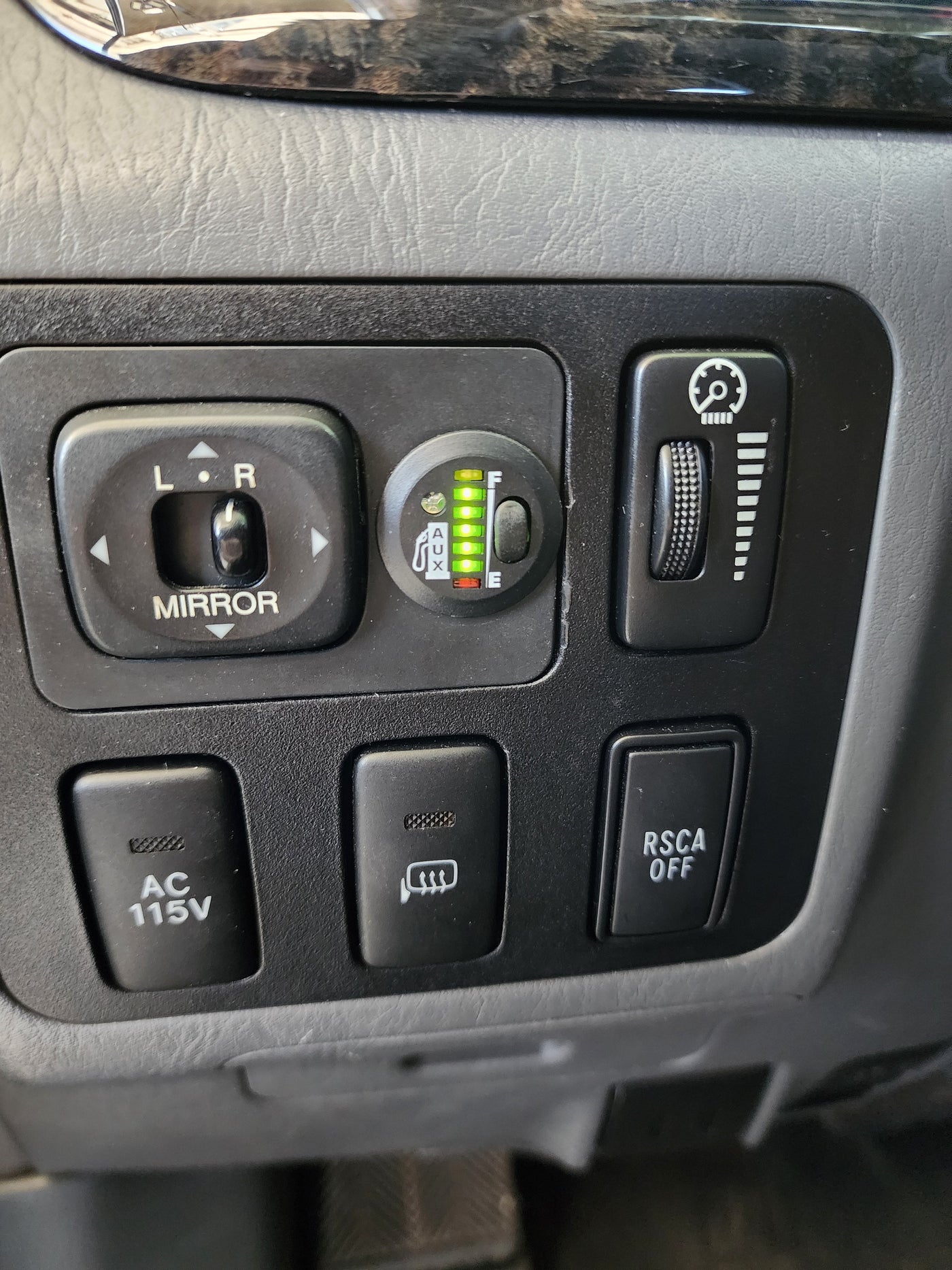

It plumbs into the factory neck so both tanks fill together. A programmable transfer switch and fuel level gauge move fuel forward and show you what you have left, all from the driver seat.
Built for the hard stuff

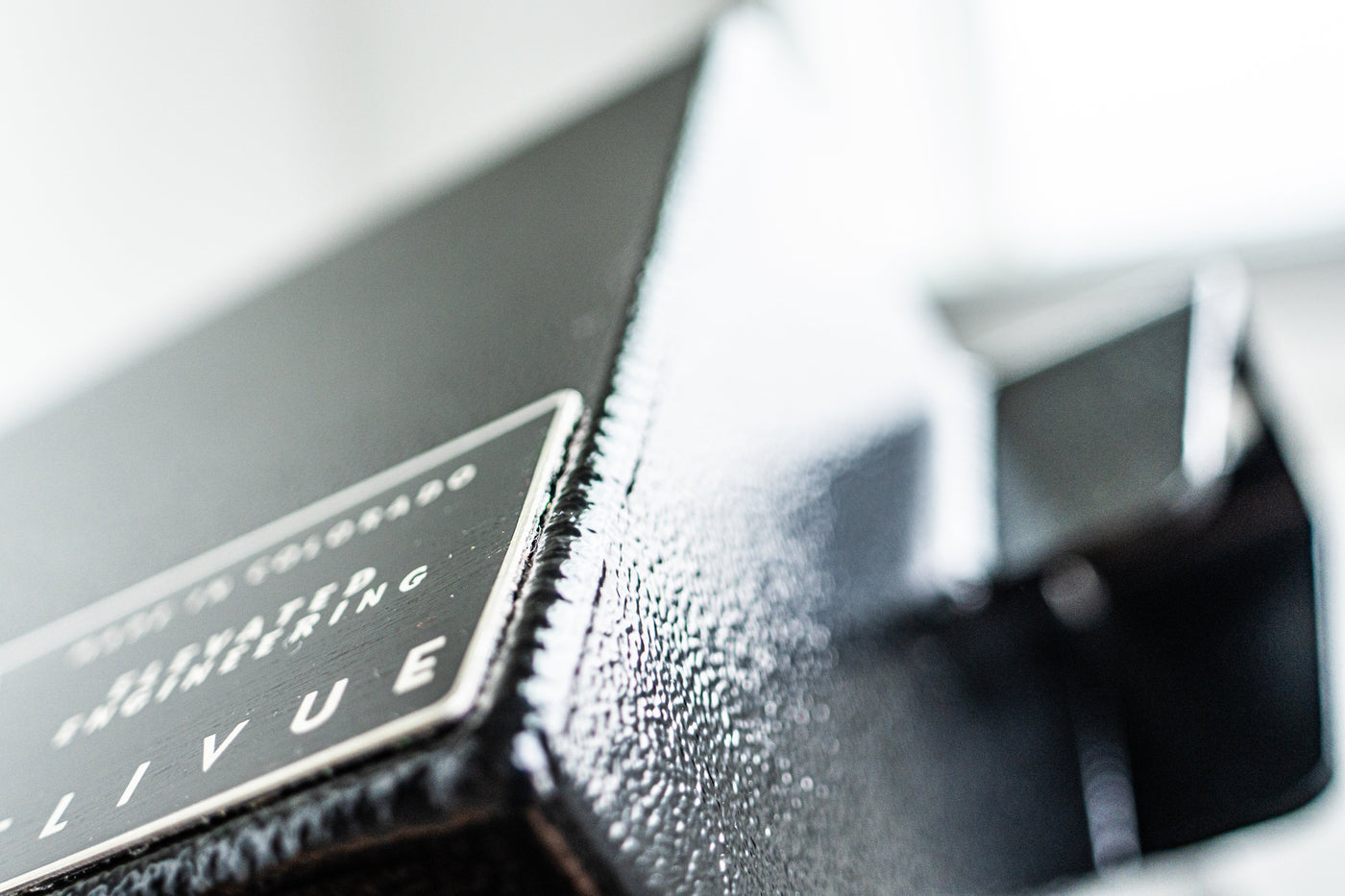

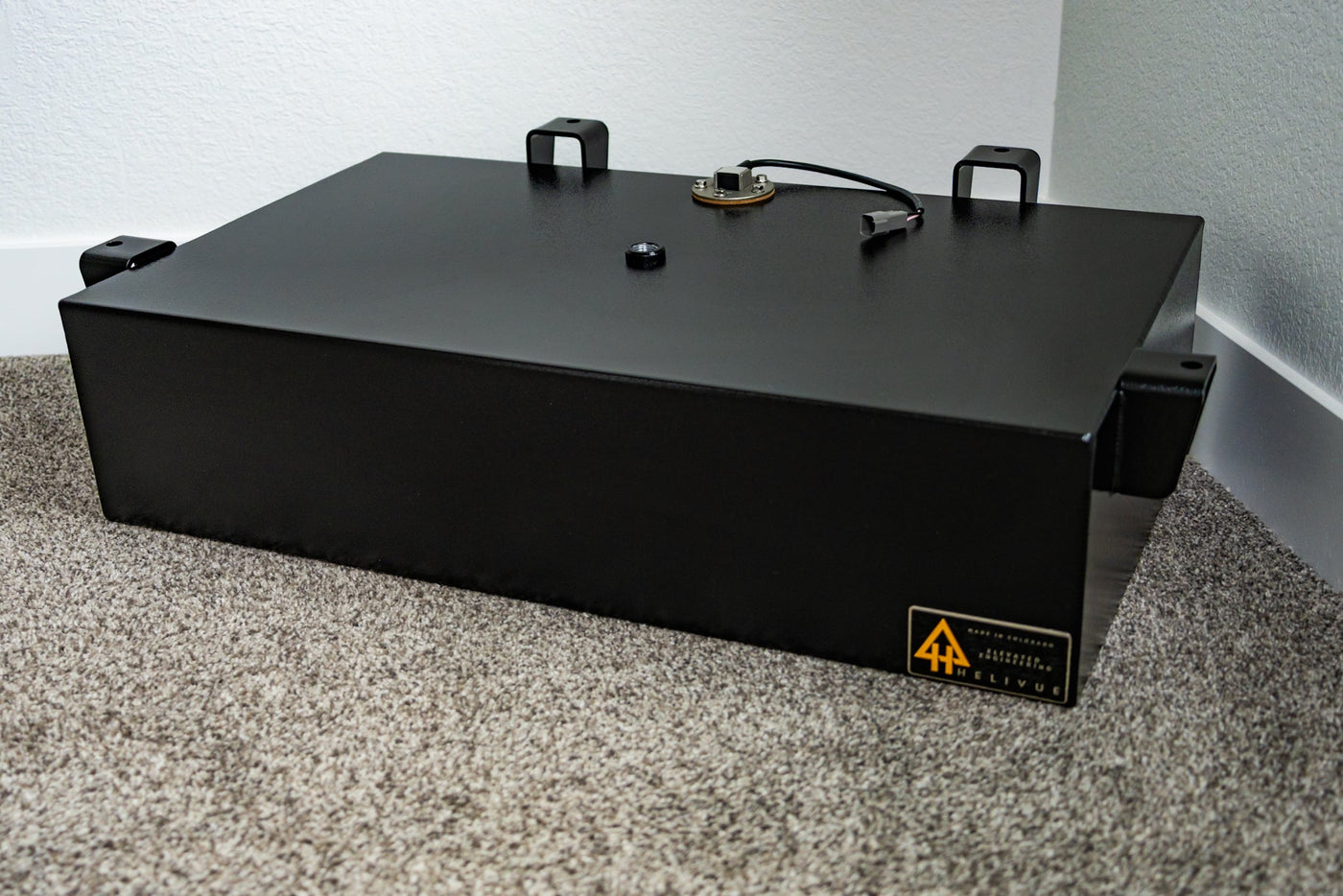

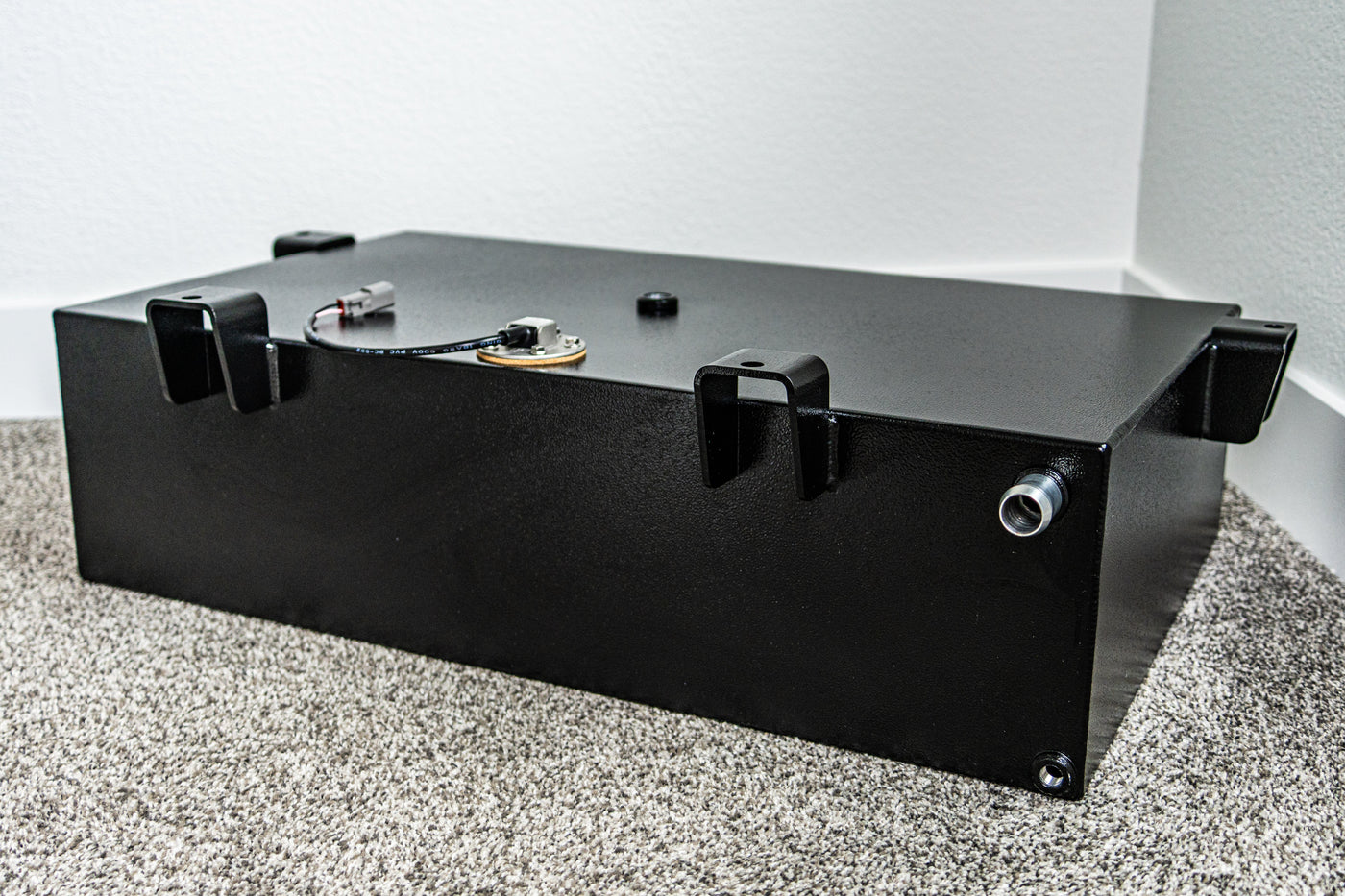

1/8 inch 5052 aluminum with hammer satin black powder coat, proven between 5,000 and 13,000 feet. The corner pickup means you can pass fuel to someone else in the convoy when the math does not work out.
Specs
- Capacity: 18 gallons
- Material: 1/8 inch 5052 aluminum
- Finish: Hammer satin black powder coat
- Dry weight: 25 lbs
- Fill point: OEM split
- Fuel type: Gasoline
- Spare tire: Must be relocated
- Install time: Roughly 4 hours
What comes in the kit

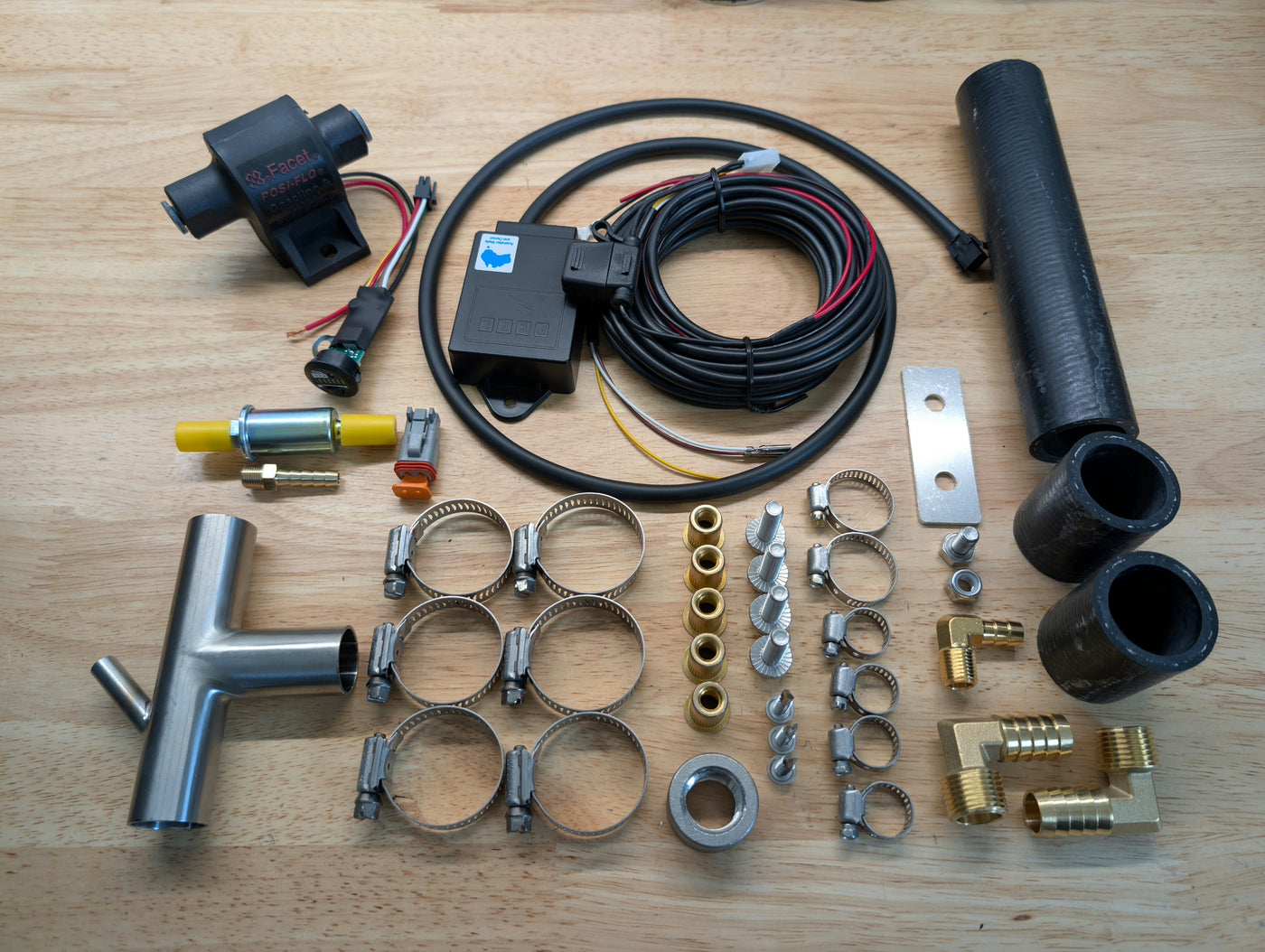

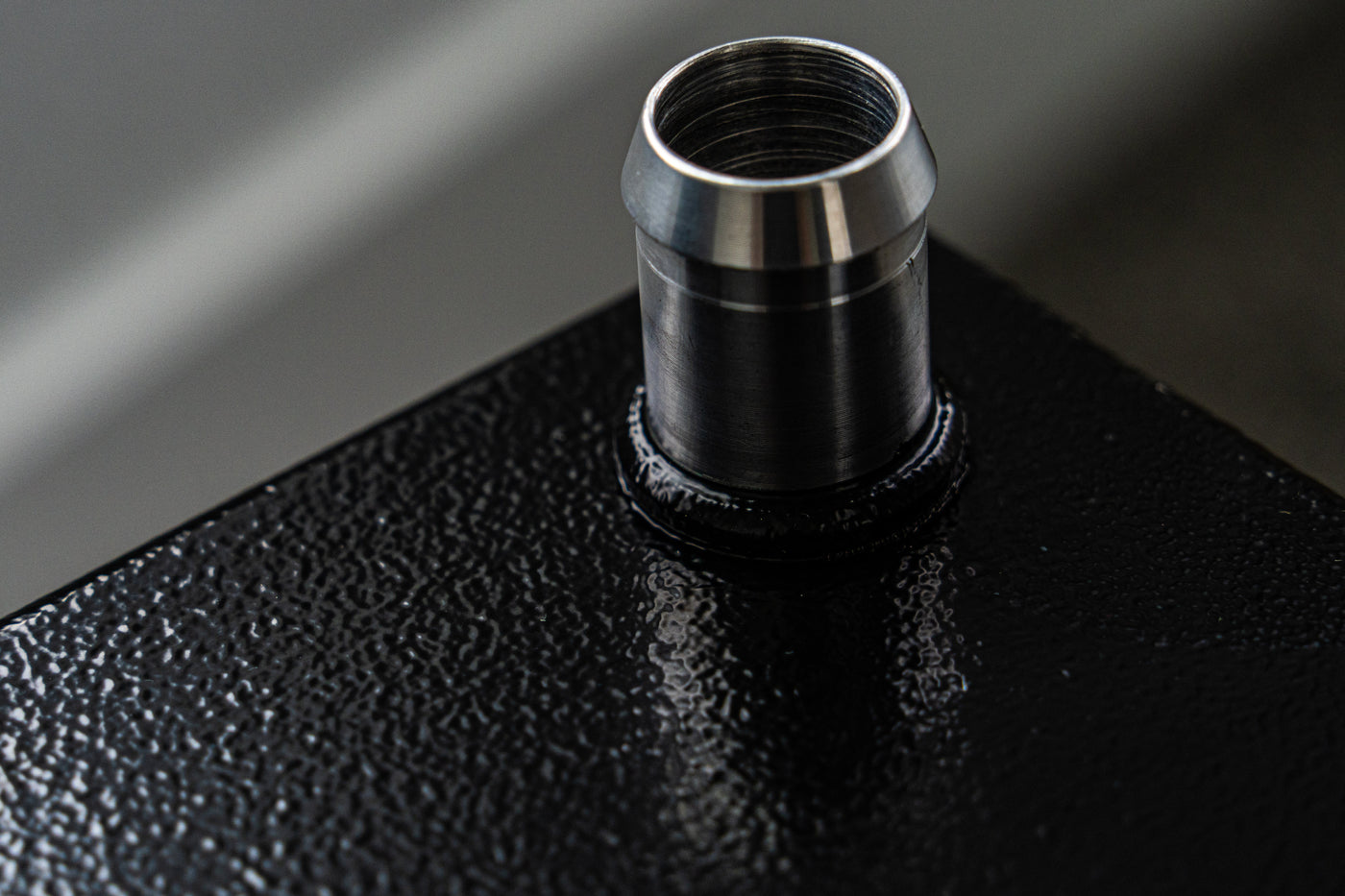

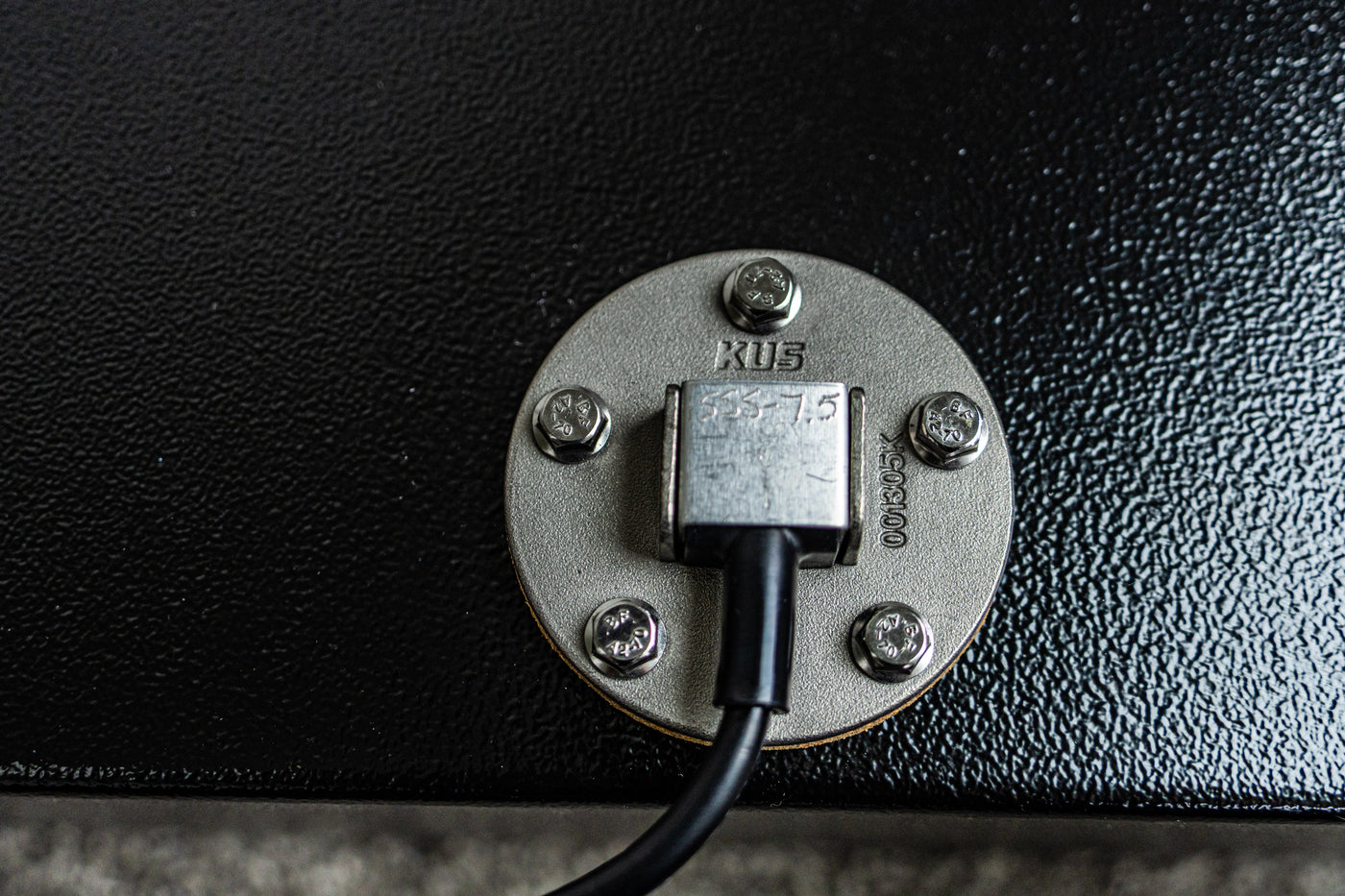

Tank, programmable fuel transfer switch and level gauge, fuel pump, stainless steel fuel level sender, stainless clamps, stainless hardware and bung.
Fitment
Lexus GX460, 2023 model year.
Pairing it with our exhaust?
We build GX460 exhaust in house. Tell us what you are running and we will confirm the combination before you order.
Designed and manufactured in Colorado by Helivue Design. Ships direct from the builder.
