90 Degree Split Y: 3D Printed 316L Stainless, 1in to 5in, 1D or 1.5D

90 Degree Split Y: 3D Printed 316L Stainless

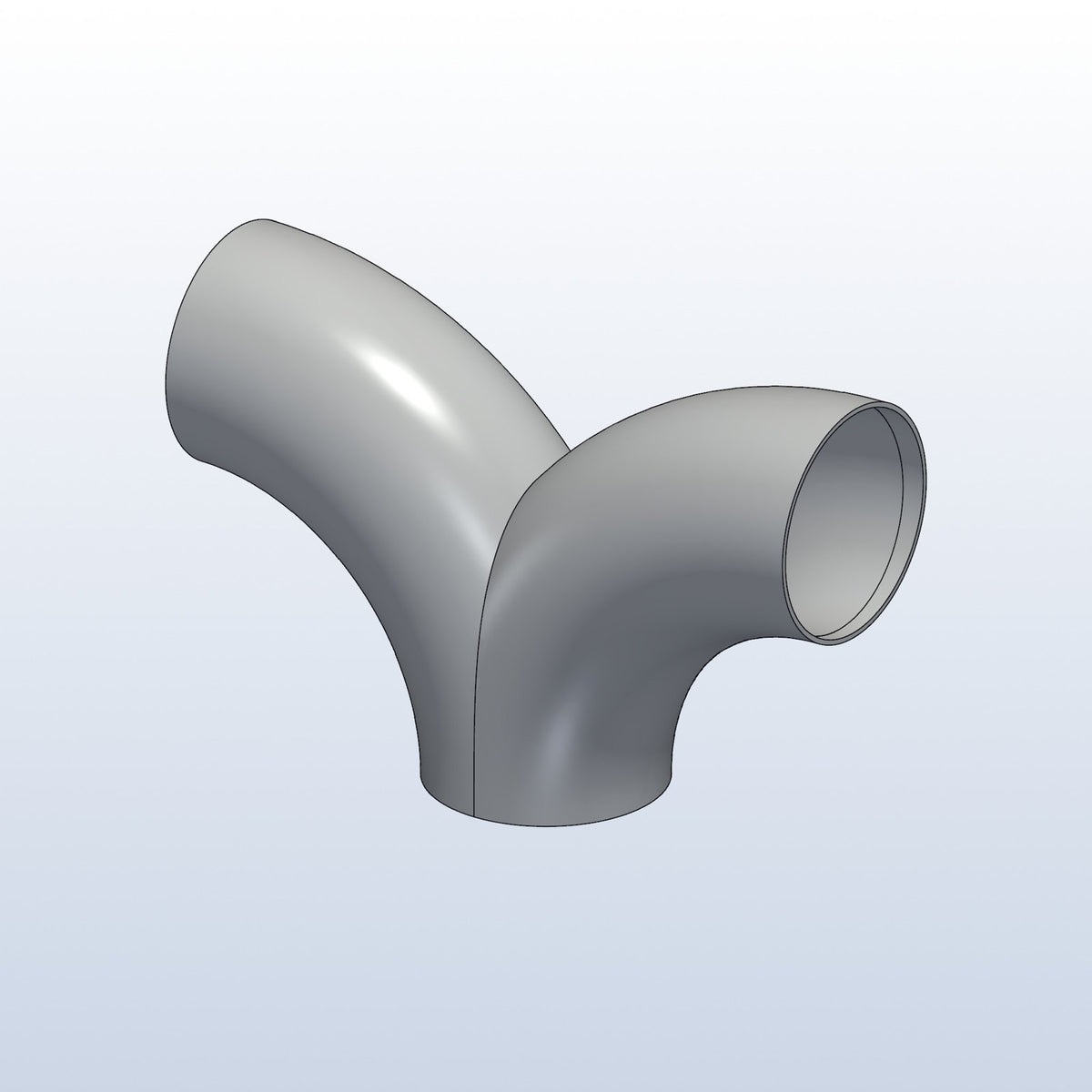

One inlet splits into two outlets, and each outlet turns 90 degrees away from the other, so the two outlets point in opposite directions, 180 degrees apart. All three ends are the same OD and there are no straight legs. It is metal 3D printed in one piece from 316L stainless, so the split is three butt welds instead of a coped and fitted Y.

Built for fabricators

• Pick a 1D or 1.5D centerline radius. 1.5D is offered up to 3.5in OD; the 4in, 4.5in and 5in sizes come in 1D only.
• Tube OD from 1in to 5in.
• Body wall is 0.049in, with a 0.065in butt weld zone running 0.30in along the bend at each end, made for 0.065 wall (16 ga) tube.
• Welds to 304 or 316 stainless tube of the same OD.
• Bead blasted finish.

Dimensions

The overall box each split Y fits in.

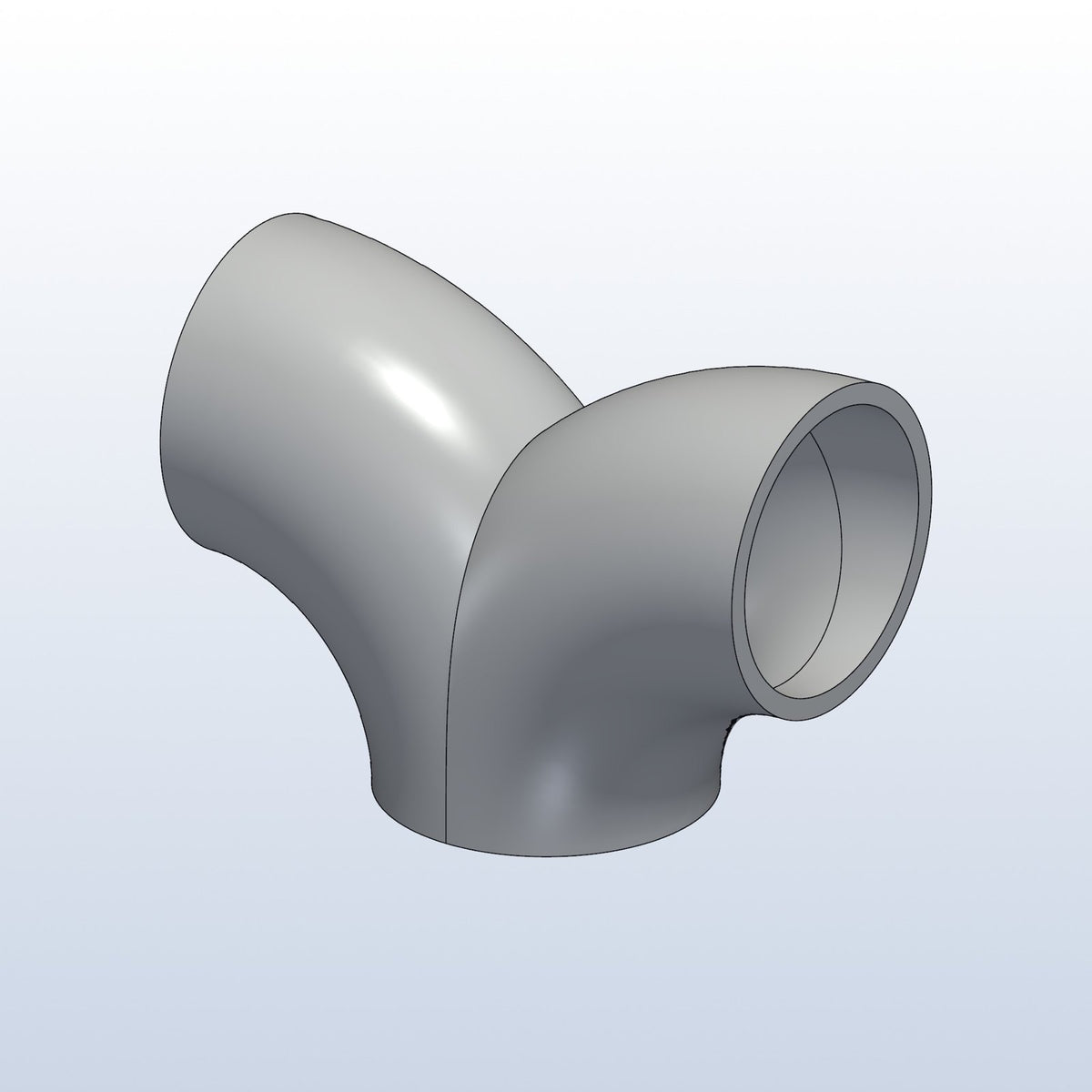

• 1in OD: 1D radius 2.00 x 1.50 x 1.00in; 1.5D radius 3.00 x 2.00 x 1.00in
• 1.25in OD: 1D radius 2.50 x 1.88 x 1.25in; 1.5D radius 3.75 x 2.50 x 1.25in
• 1.38in OD: 1D radius 2.75 x 2.06 x 1.38in; 1.5D radius 4.13 x 2.75 x 1.38in
• 1.5in OD: 1D radius 3.00 x 2.25 x 1.50in; 1.5D radius 4.50 x 3.00 x 1.50in
• 1.63in OD: 1D radius 3.25 x 2.44 x 1.63in; 1.5D radius 4.88 x 3.25 x 1.63in
• 1.75in OD: 1D radius 3.50 x 2.63 x 1.75in; 1.5D radius 5.25 x 3.50 x 1.75in
• 1.88in OD: 1D radius 3.75 x 2.81 x 1.88in; 1.5D radius 5.63 x 3.75 x 1.88in
• 2in OD: 1D radius 4.00 x 3.00 x 2.00in; 1.5D radius 6.00 x 4.00 x 2.00in
• 2.13in OD: 1D radius 4.25 x 3.19 x 2.13in; 1.5D radius 6.38 x 4.25 x 2.13in
• 2.25in OD: 1D radius 4.50 x 3.38 x 2.25in; 1.5D radius 6.75 x 4.50 x 2.25in
• 2.36in OD: 1D radius 4.72 x 3.54 x 2.36in; 1.5D radius 7.08 x 4.72 x 2.36in
• 2.5in OD: 1D radius 5.00 x 3.75 x 2.50in; 1.5D radius 7.50 x 5.00 x 2.50in
• 2.75in OD: 1D radius 5.50 x 4.13 x 2.75in; 1.5D radius 8.25 x 5.50 x 2.75in
• 3in OD: 1D radius 6.00 x 4.50 x 3.00in; 1.5D radius 9.00 x 6.00 x 3.00in
• 3.5in OD: 1D radius 7.00 x 5.25 x 3.50in; 1.5D radius 10.50 x 7.00 x 3.50in
• 4in OD: 1D radius 8.00 x 6.00 x 4.00in
• 4.5in OD: 1D radius 9.00 x 6.75 x 4.50in

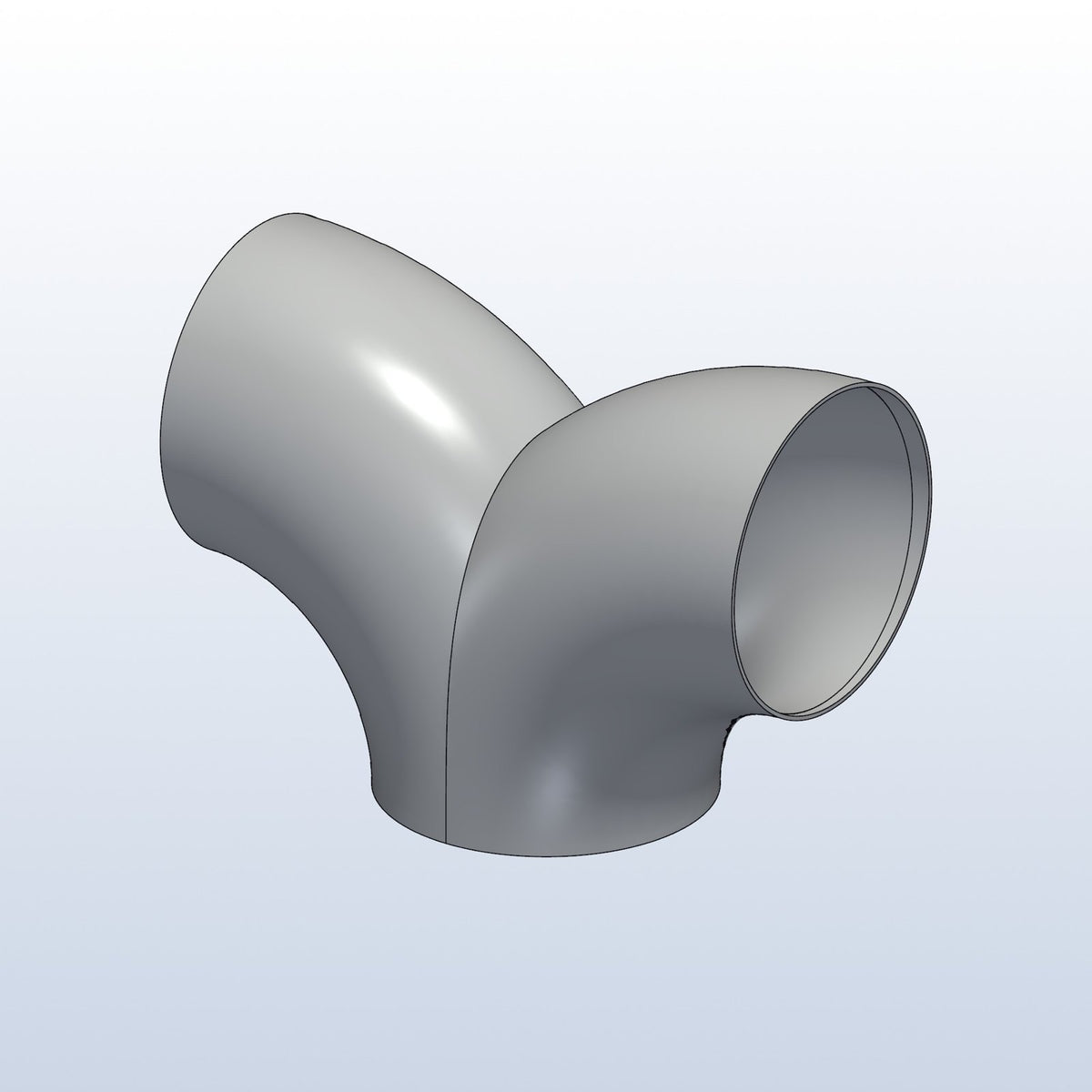

• 5in OD: 1D radius 10.00 x 7.50 x 5.00in

What's in the box

One split Y in the tube size and bend radius you pick.

Install notes

• Weld on part. Butt weld each end to stainless tube of the same OD.
• The ends are made for 0.065 wall (16 ga) tube.
• Professional welding recommended.

Related printed parts

See the twin tip splitters for a 1 into 2 with parallel outlets, the 0.75D tight radius elbows, and the full 3D printed stainless exhaust parts collection.

Buy the STEP file, $11

Want to print it yourself? Pick STEP file under Format and you get the same 3D model we send to our printing partner, in the size and bend radius you chose. The download link comes right after checkout and nothing ships. Upload it to any online metal 3D printing service for your own quote.

The file is yours to use however you want. It is designed for 316L stainless.

Parts printed by someone else are not covered by our warranty. Digital files are non-refundable.

Lead time

Printed to order. Allow about 4 weeks before it ships.

For off-road and competition use. Buyer is responsible for following all local exhaust and noise laws.

Designed by Brockett Built in central Illinois. Printed by an outside metal printing partner.
