Straight Transitions: 3D Printed 316L Stainless Reducers, 1in to 8in

Straight Transitions: 3D Printed 316L Stainless Reducers

Step a pipe up or down a size without rolling a cone or stacking reducers. Each transition is a one piece 316L stainless cone, metal 3D printed. Square cut both tubes, butt weld them on, and the size change is done in the shortest length that prints.

Built for fabricators

• Cone at 44 degrees to the pipe axis, the shortest cone that prints with no support.
• No straight section. The overall length is just the cone.
• Each end is a flat 0.065in ring at the tube OD, so 16 ga tube butts on flush.
• Wall is 0.047in, measured square to the cone.
• Sizes from 1in to 8in in half inch and 1 inch steps, plus 2in to 3.5in, 2in to 4in and 2.5in to 4in.
• Bead blasted finish.

Overall length

Measured end face to end face.

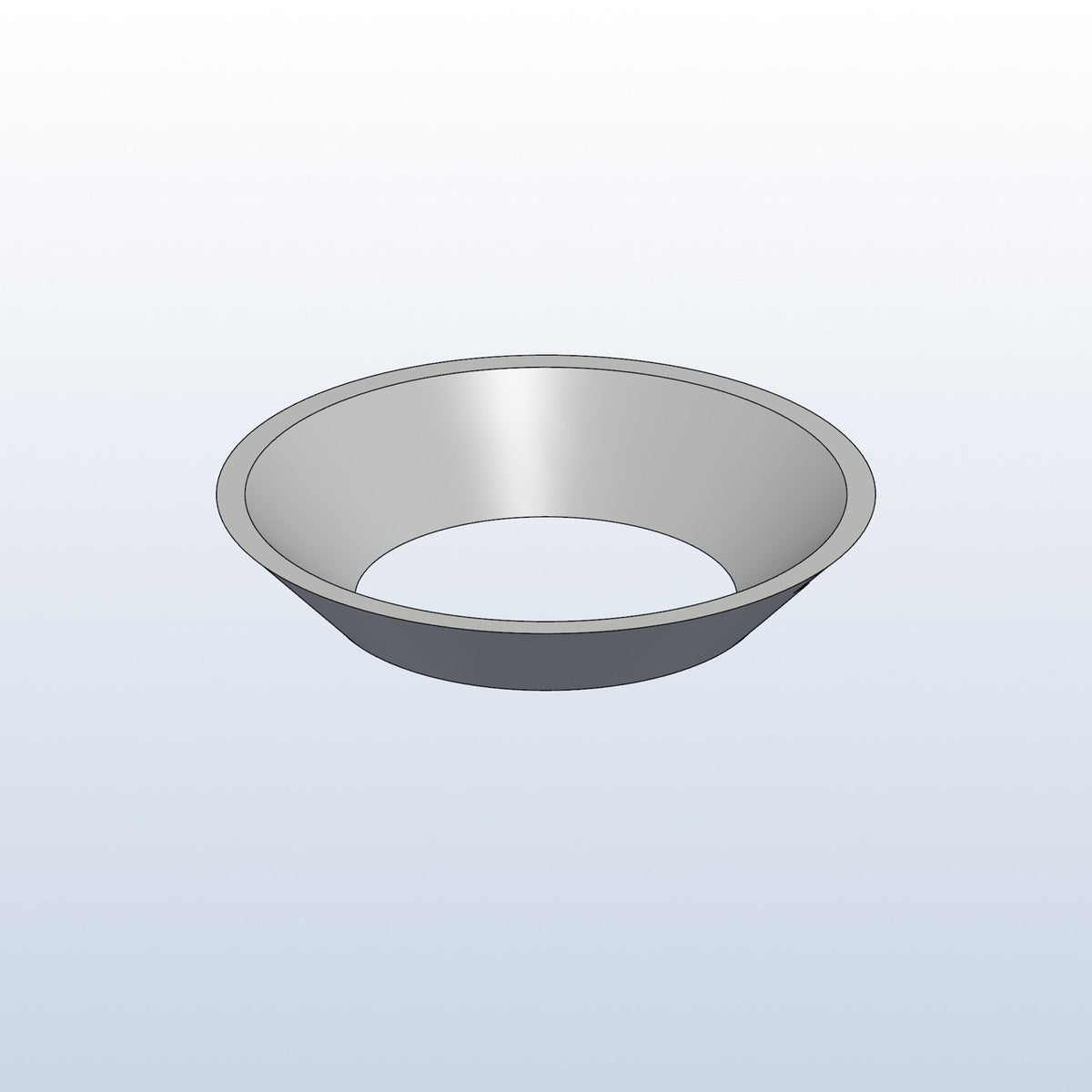

• 1in to 1.5in: 0.27in long

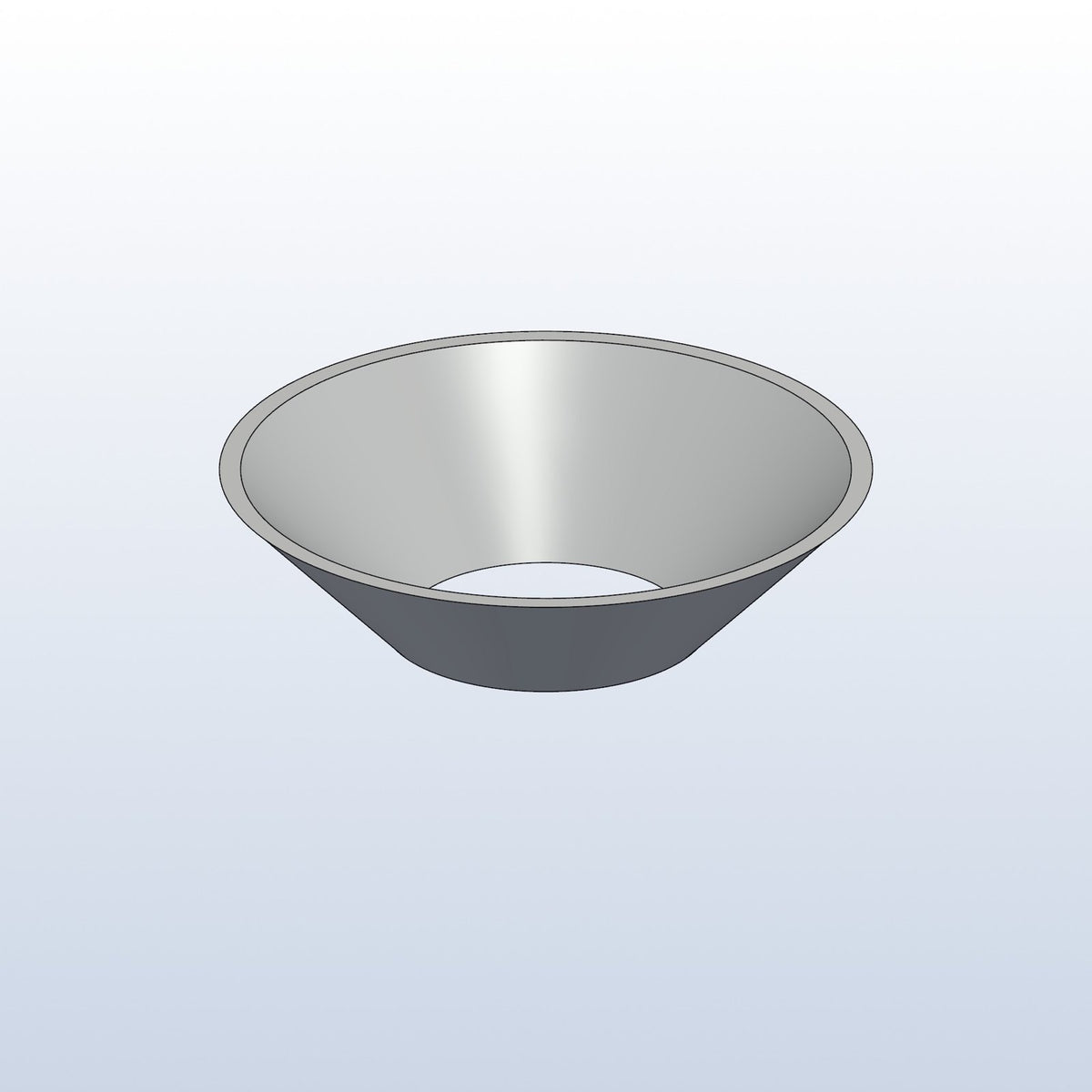

• 1in to 2in: 0.52in long
• 1.5in to 2in: 0.26in long
• 1.5in to 2.5in: 0.53in long

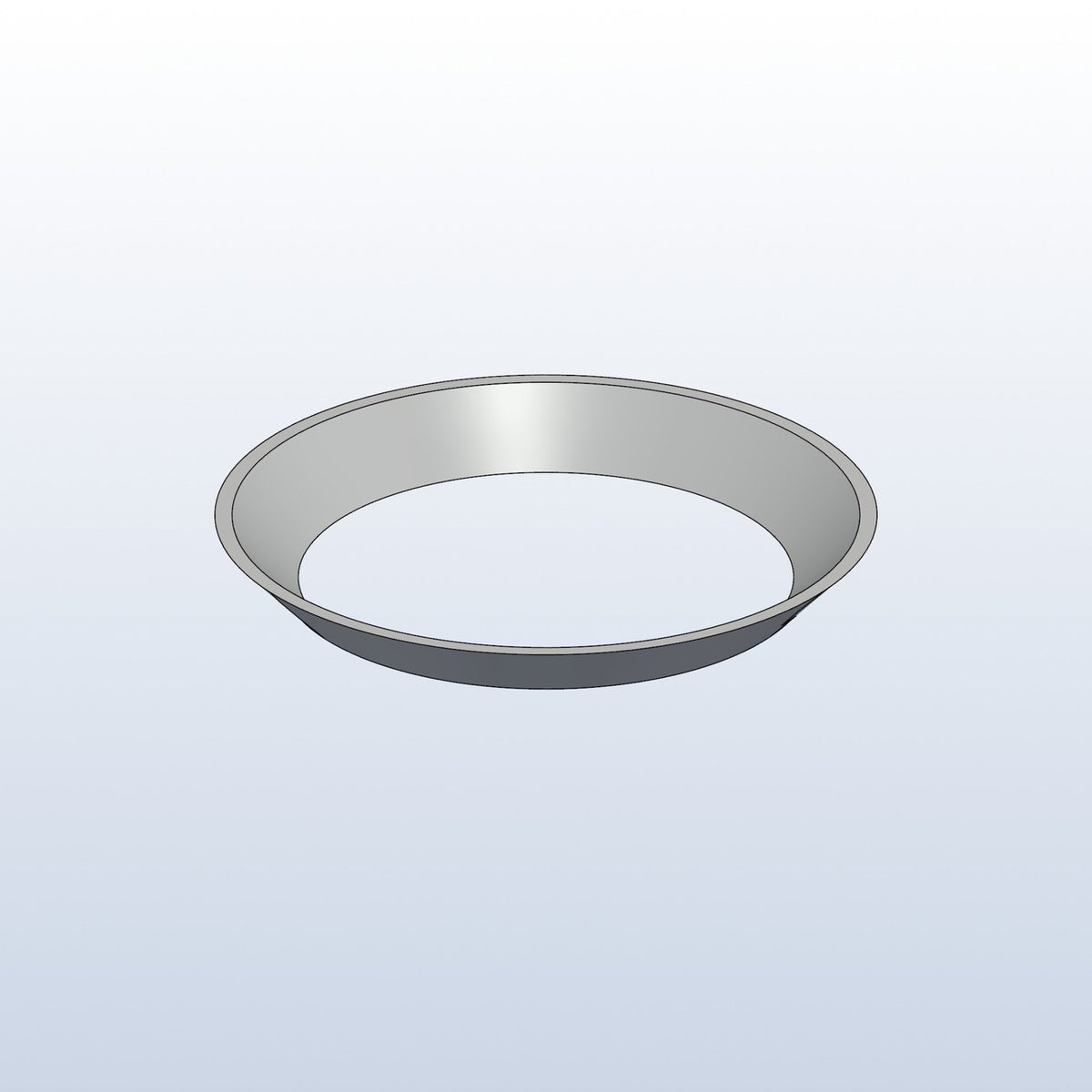

• 2in to 2.5in: 0.26in long

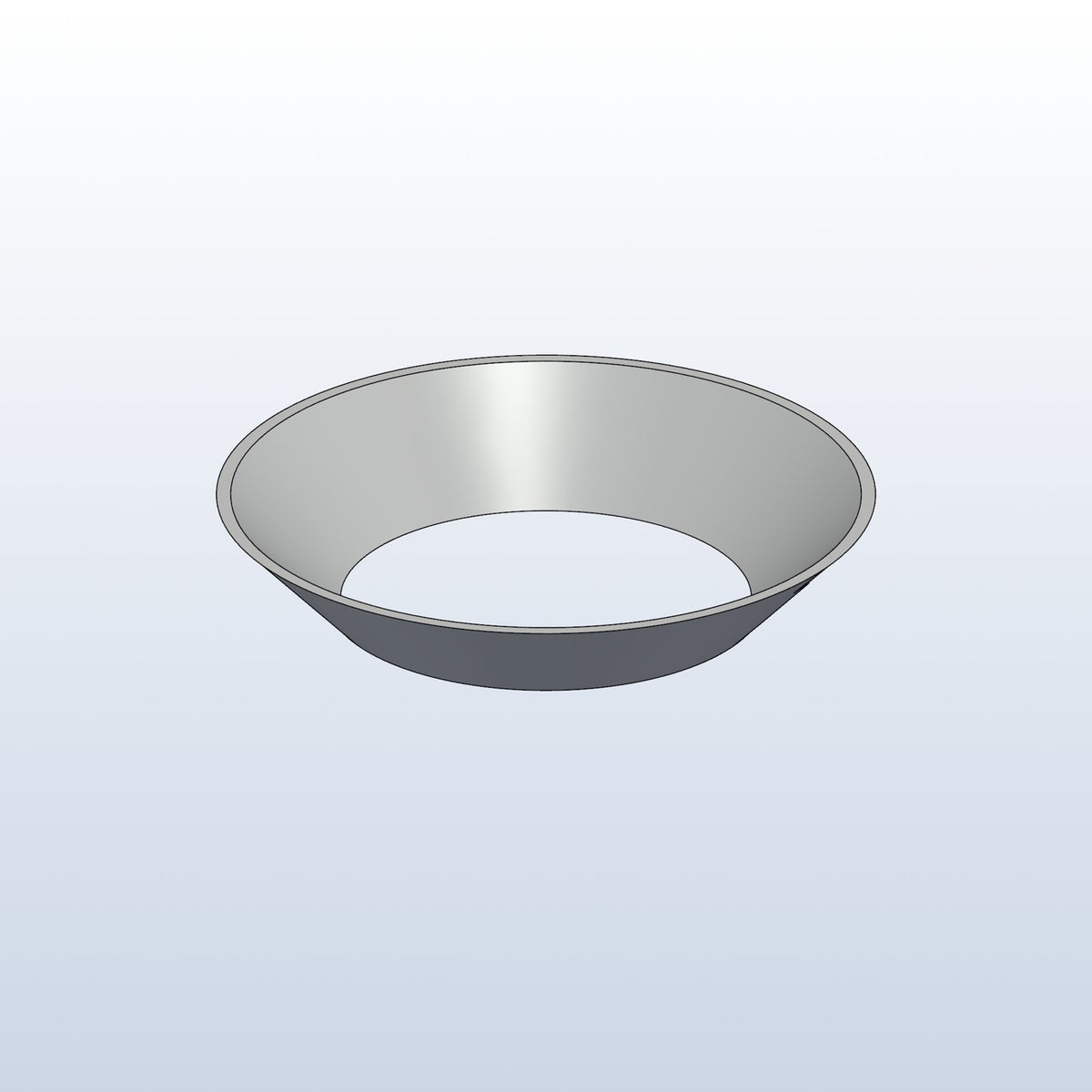

• 2in to 3in: 0.53in long
• 2in to 3.5in: 0.79in long

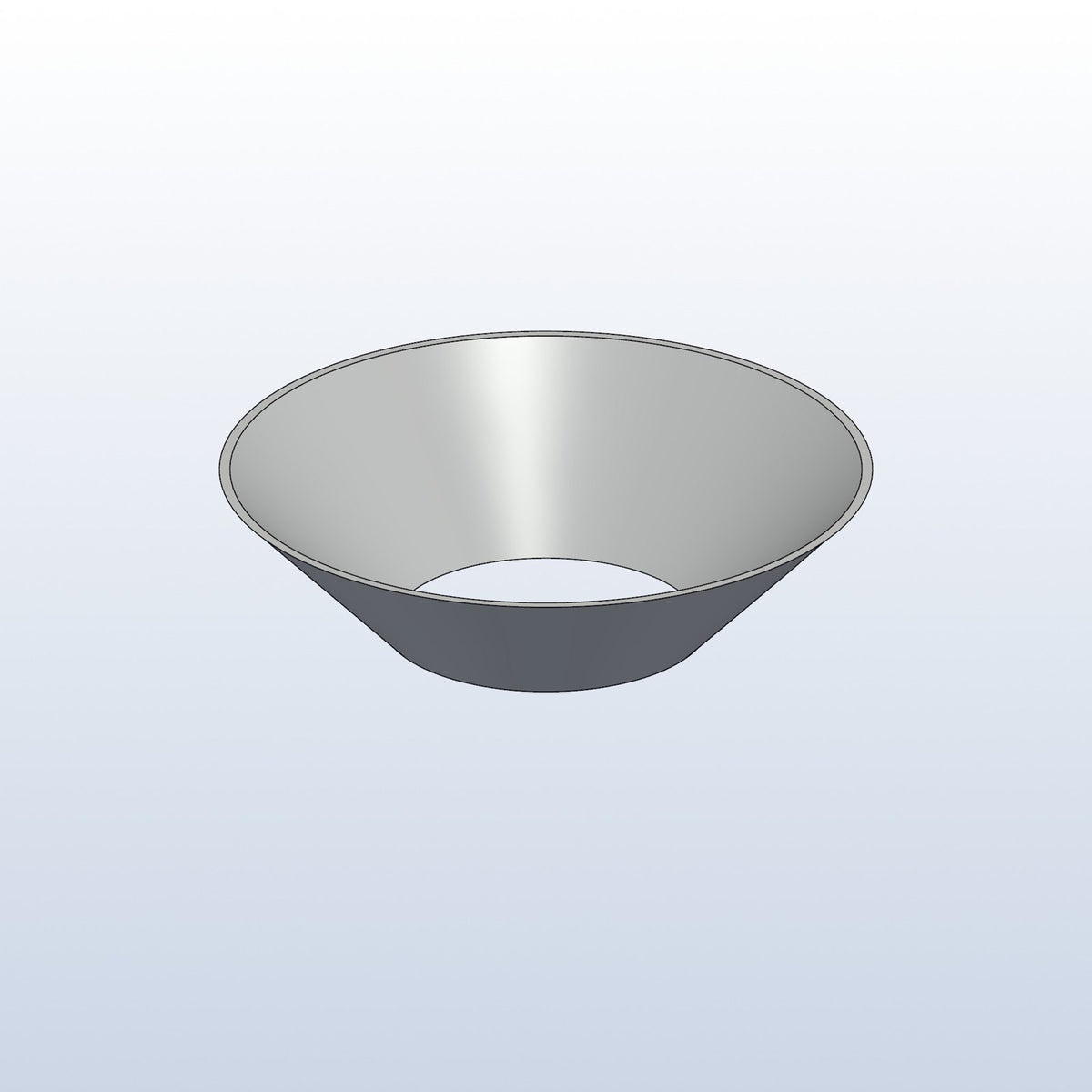

• 2in to 4in: 1.05in long
• 2.5in to 3in: 0.26in long
• 2.5in to 3.5in: 0.53in long

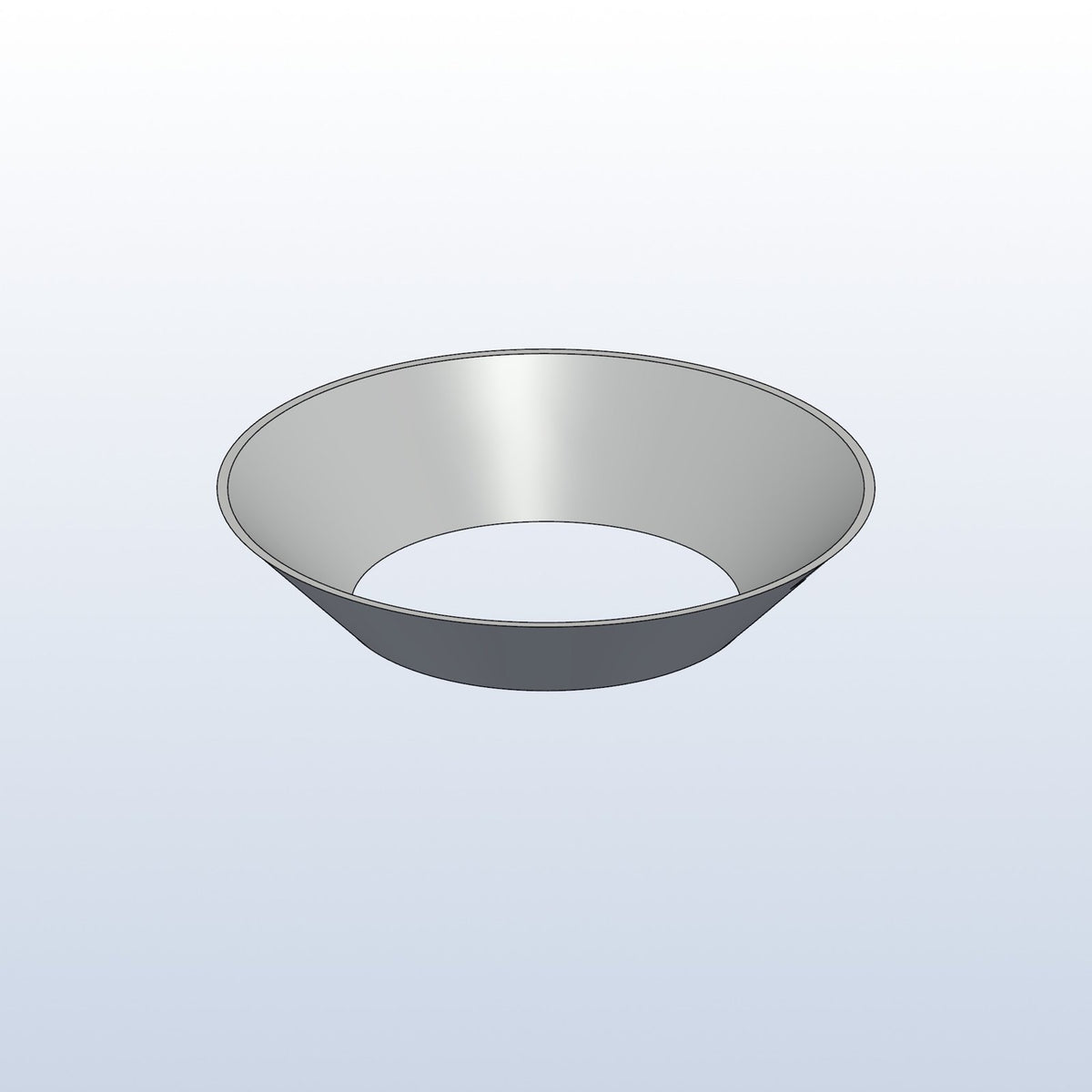

• 2.5in to 4in: 0.79in long
• 3in to 3.5in: 0.27in long

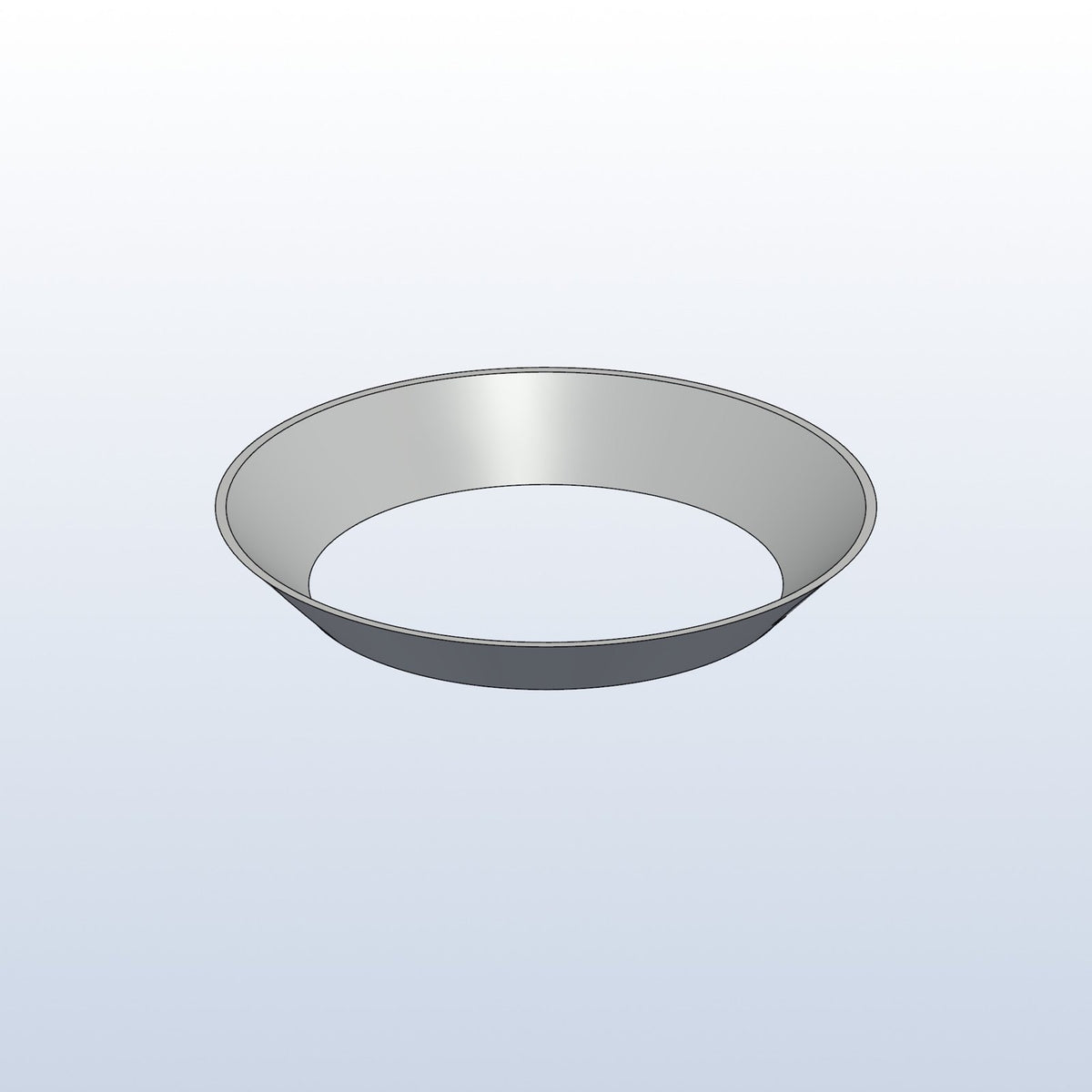

• 3in to 4in: 0.53in long
• 3.5in to 4in: 0.26in long
• 3.5in to 4.5in: 0.53in long
• 4in to 4.5in: 0.26in long
• 4in to 5in: 0.53in long

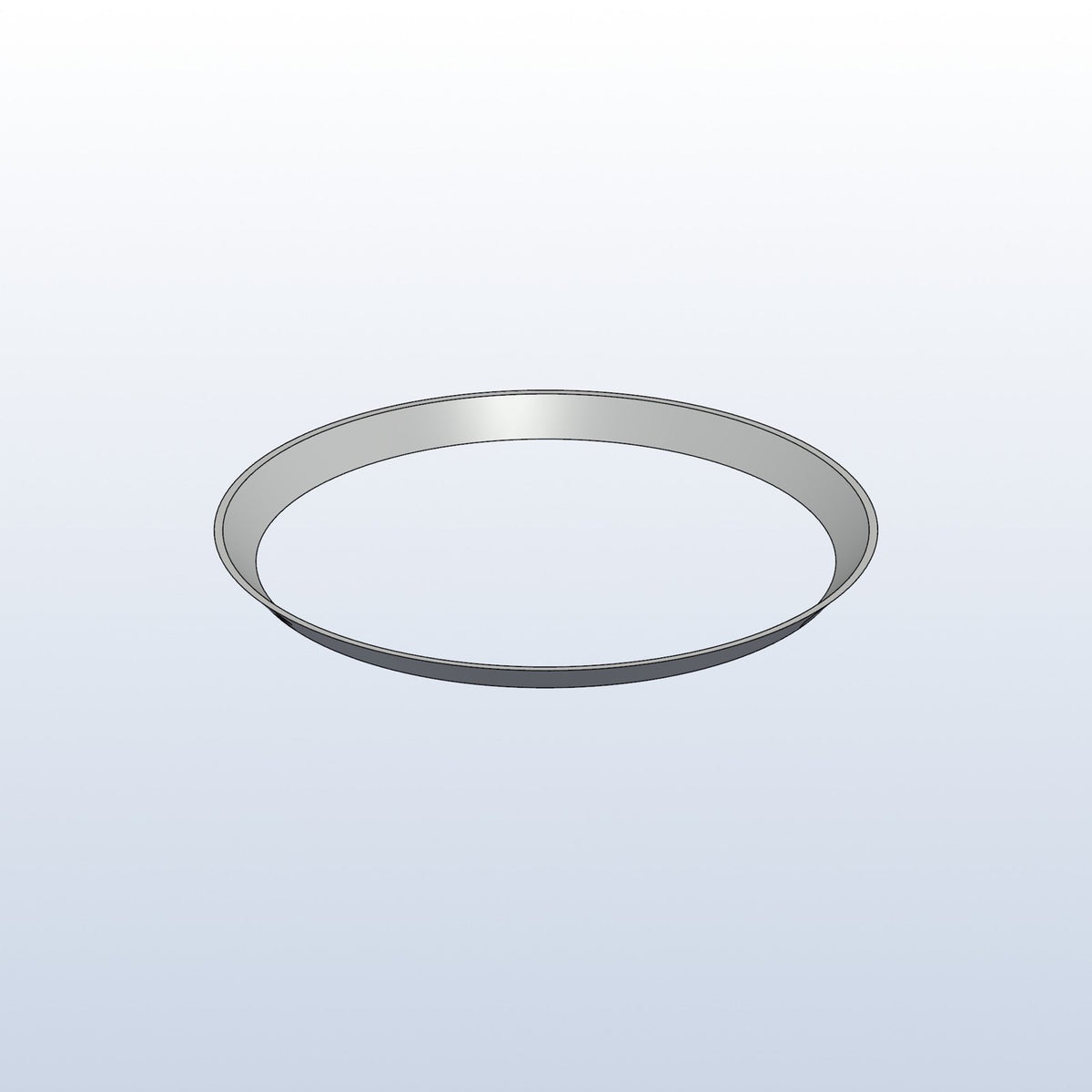

• 4.5in to 5in: 0.27in long
• 4.5in to 5.5in: 0.53in long
• 5in to 5.5in: 0.27in long

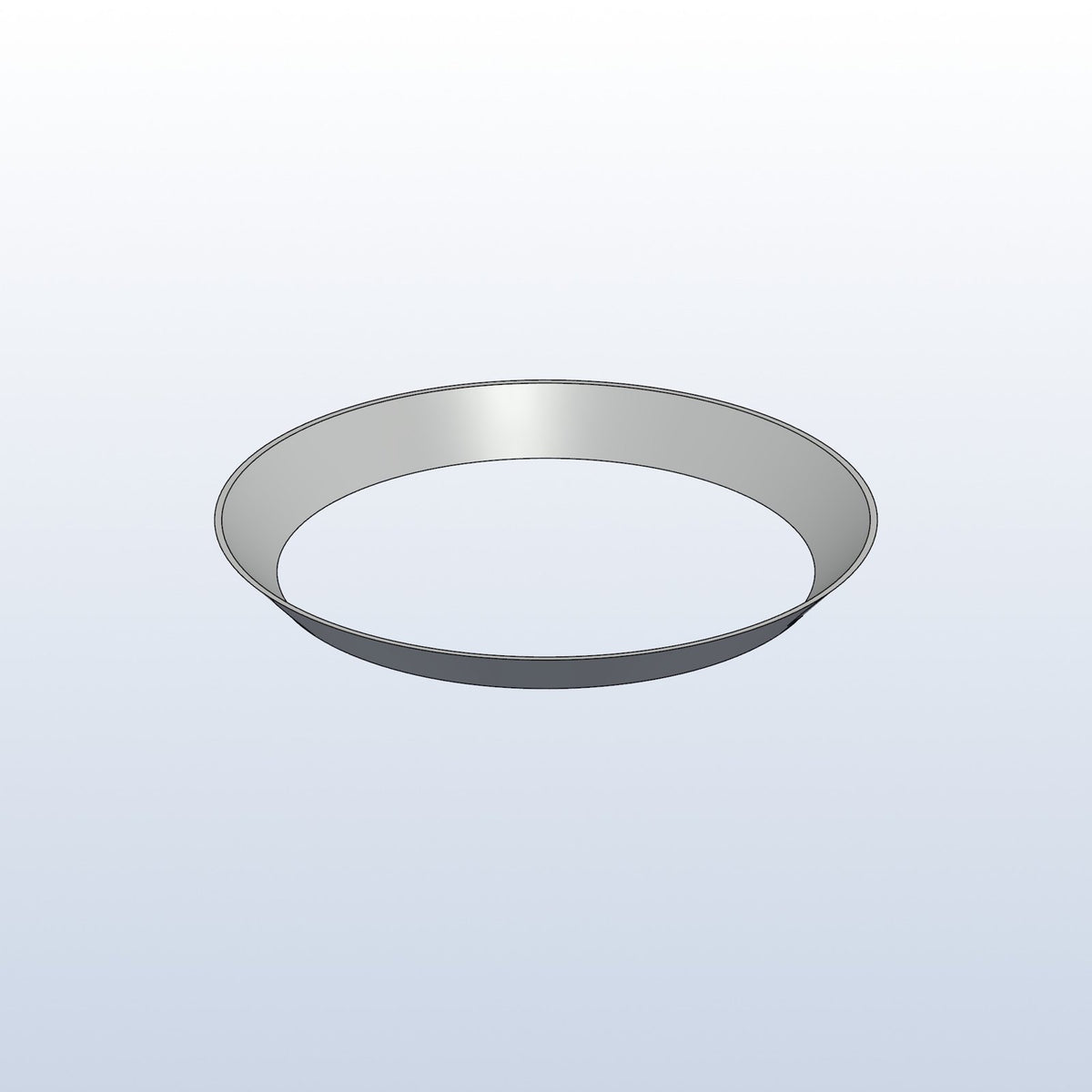

• 5in to 6in: 0.53in long
• 5.5in to 6in: 0.27in long
• 5.5in to 6.5in: 0.53in long
• 6in to 6.5in: 0.27in long

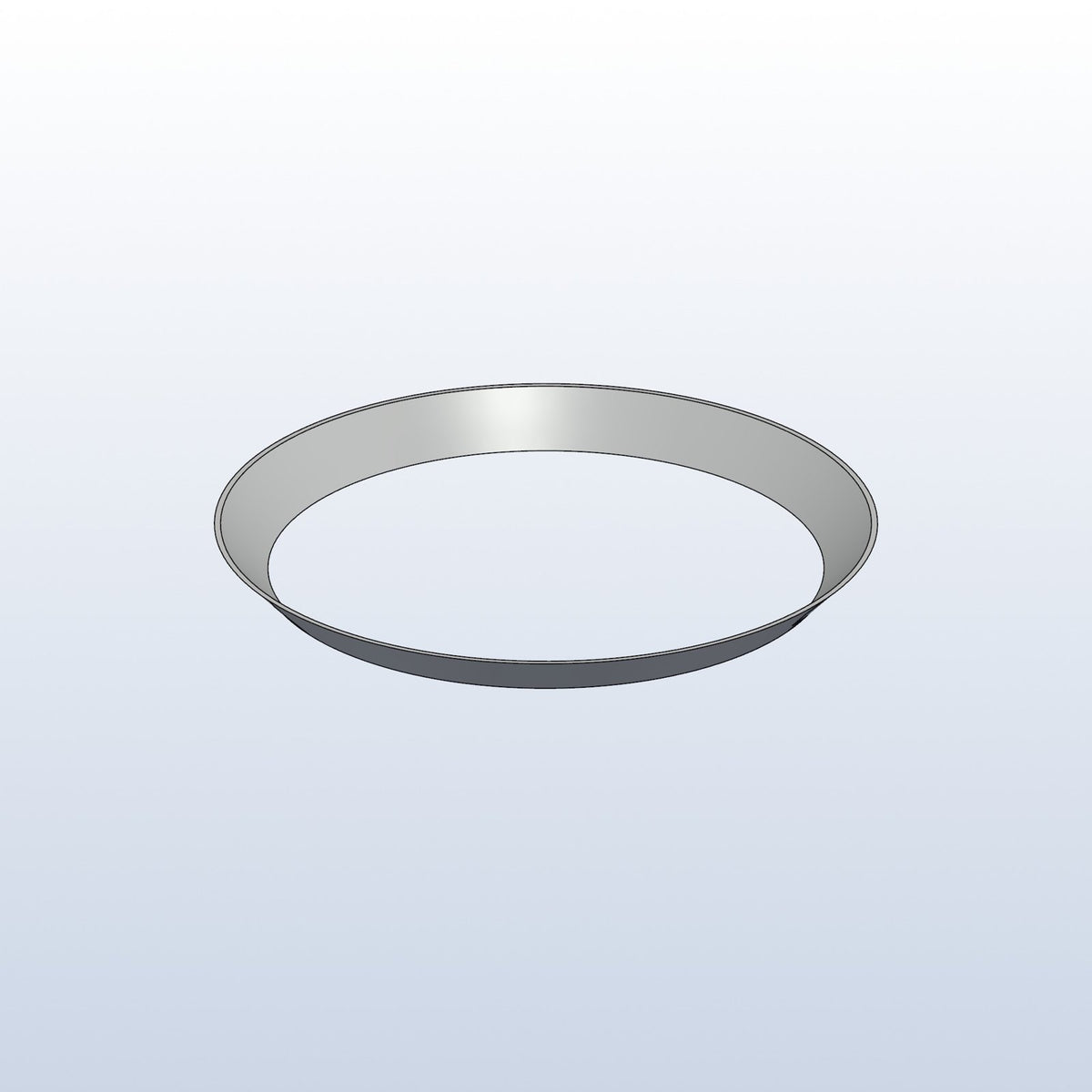

• 6in to 7in: 0.53in long
• 6.5in to 7in: 0.27in long
• 6.5in to 7.5in: 0.53in long
• 7in to 7.5in: 0.27in long
• 7in to 8in: 0.53in long

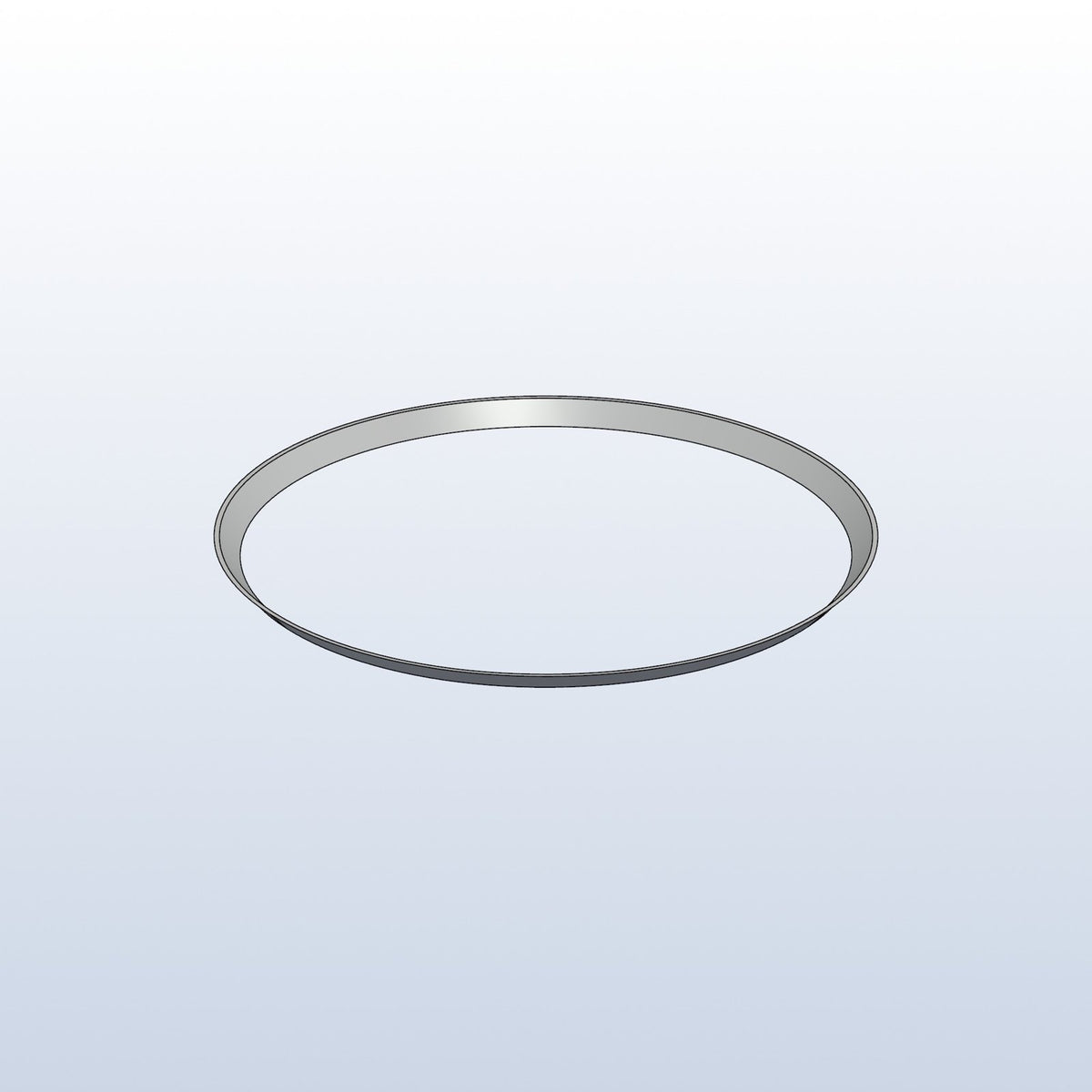

• 7.5in to 8in: 0.27in long

What's in the box

One transition in the size you pick.

Install notes

• Weld on part. Butt weld each end to 304 or 316 stainless tube of the matching OD.
• The ends are made for 0.065 wall (16 ga) tube.
• Professional welding recommended.

Related printed parts

See the 0.75D tight radius elbows, the printed 2 into 1 merges and the full 3D printed stainless exhaust parts collection.

Buy the STEP file, $11

Want to print it yourself? Pick STEP file under Format and you get the same 3D model we send to our printing partner, in the size you chose. The download link comes right after checkout and nothing ships. Upload it to any online metal 3D printing service for your own quote.

The file is yours to use however you want. It is designed for 316L stainless.

Parts printed by someone else are not covered by our warranty. Digital files are non-refundable.

Lead time

Printed to order. Allow about 4 weeks before it ships.

For off-road and competition use. Buyer is responsible for following all local exhaust and noise laws.

Designed by Brockett Built in central Illinois. Printed by an outside metal printing partner.
