Printed 2 into 1 Merges: 3D Printed 316L Stainless Merge Collectors, 2in to 4in

Printed 2 into 1 Merges: 316L Stainless

A fabrication component to cut labor and speed up production. Each merge takes two inlets into one outlet in a single metal 3D printed piece of 316L stainless, so the hard part of a 2 into 1 collector is already done. Cut and fit your tube, butt weld it to the merge, and move on.

Built for fabricators

• Two inlets merge into one outlet at a 45 degree included angle, 22.5 degrees each side.
• Rounded inside crotch where the two inlets meet.
• Body wall is 0.049in.
• Weld ends are thickened to 0.065in (a step on the inside) to butt weld to 16 ga tube: the last 0.30in of each inlet and the last 0.20in of the outlet.
• Straight 0.30in weld stub on the outlet.
• Seven sizes from 2 x 2in into 2in up to 2 x 4in into 4in, including 2 x 2in into 2.5in and 2 x 2.5in into 3in step ups.

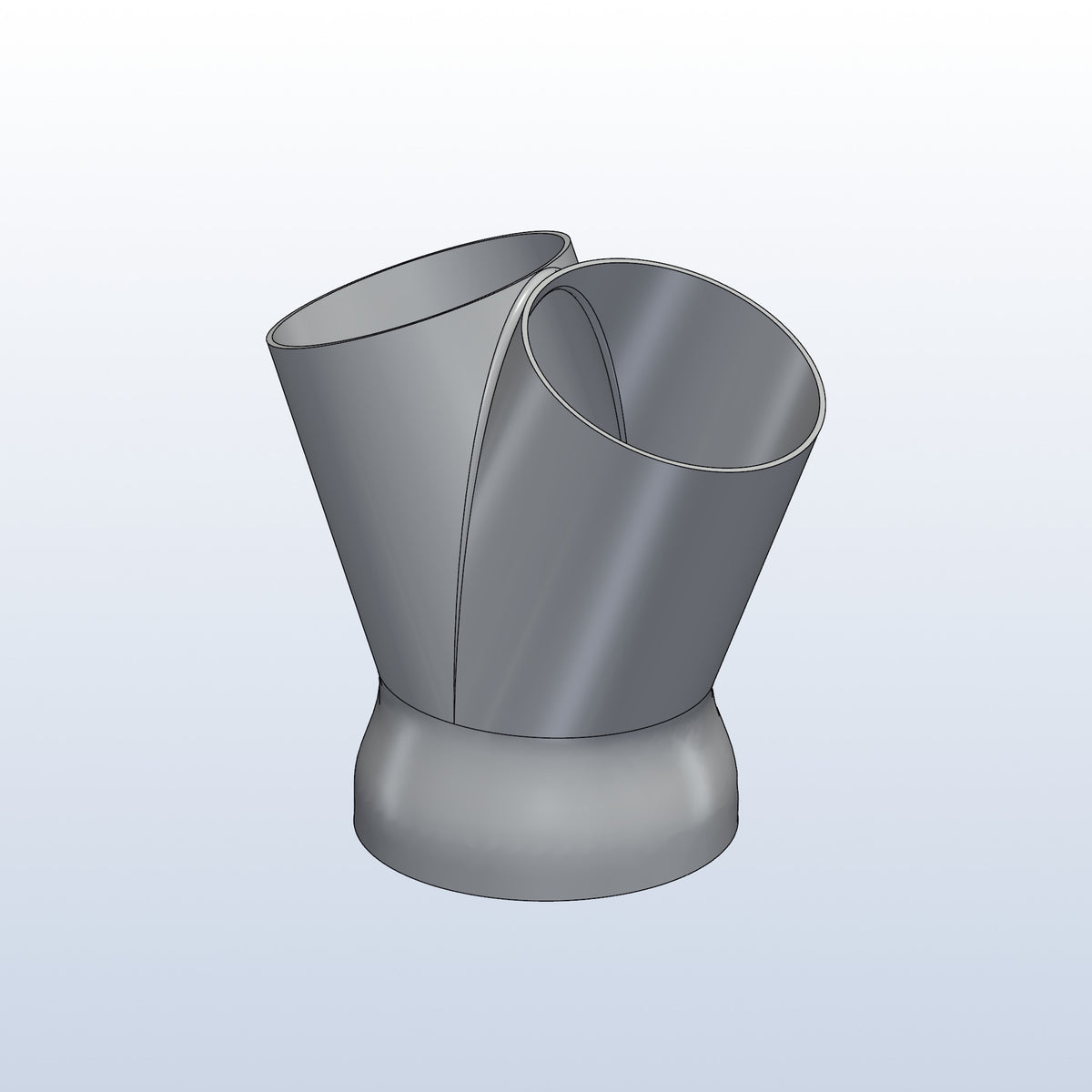

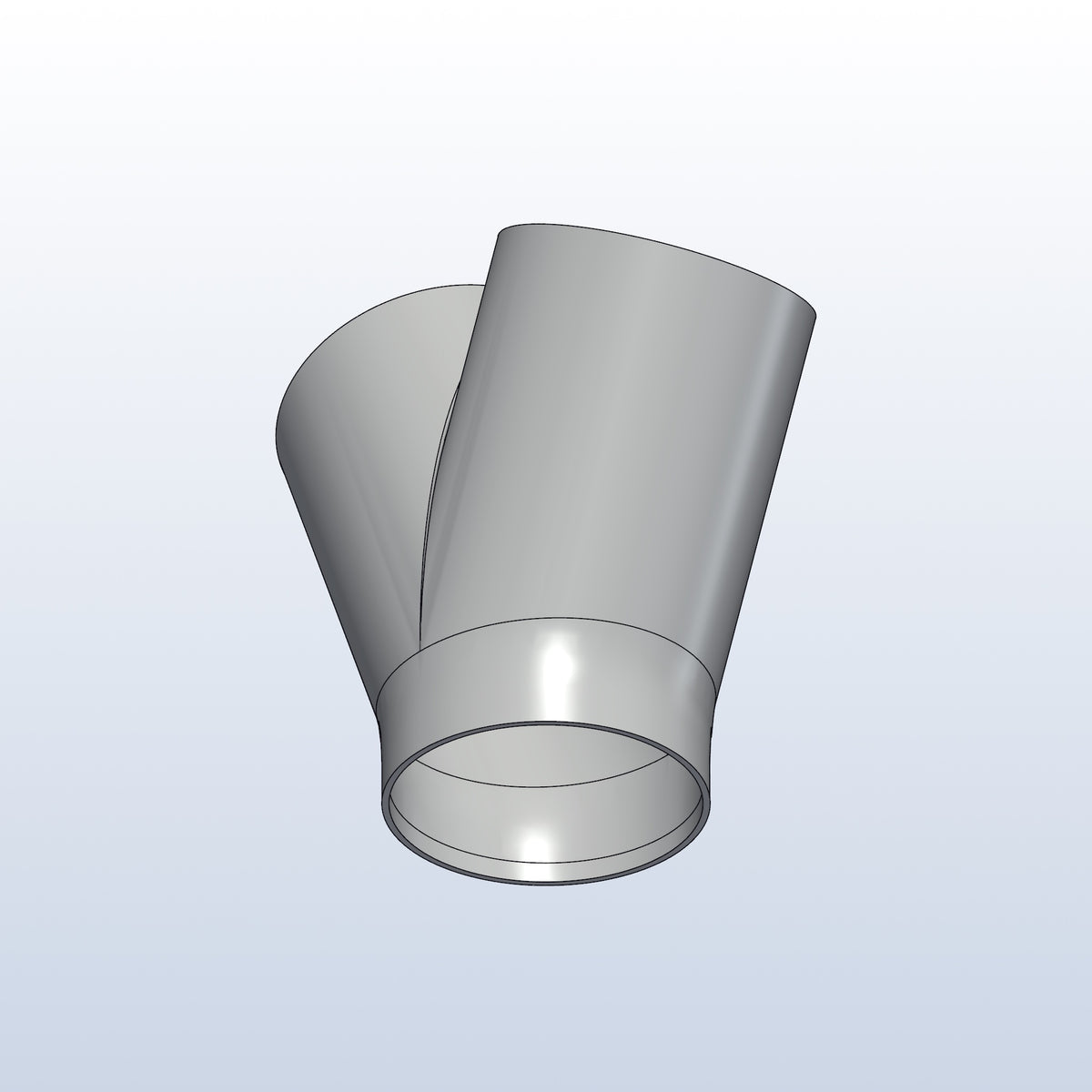

2 x 2.5in into 3in (MG-250-300): the inlets are short and cut just past where they meet, like a hand built merge, so the inlet ends are the plain 0.049in body wall. Only the outlet has the 0.065in weld end.

Dimensions

Overall size of each merge: width across the inlets, height from the outlet end to the inlet ends, and depth.

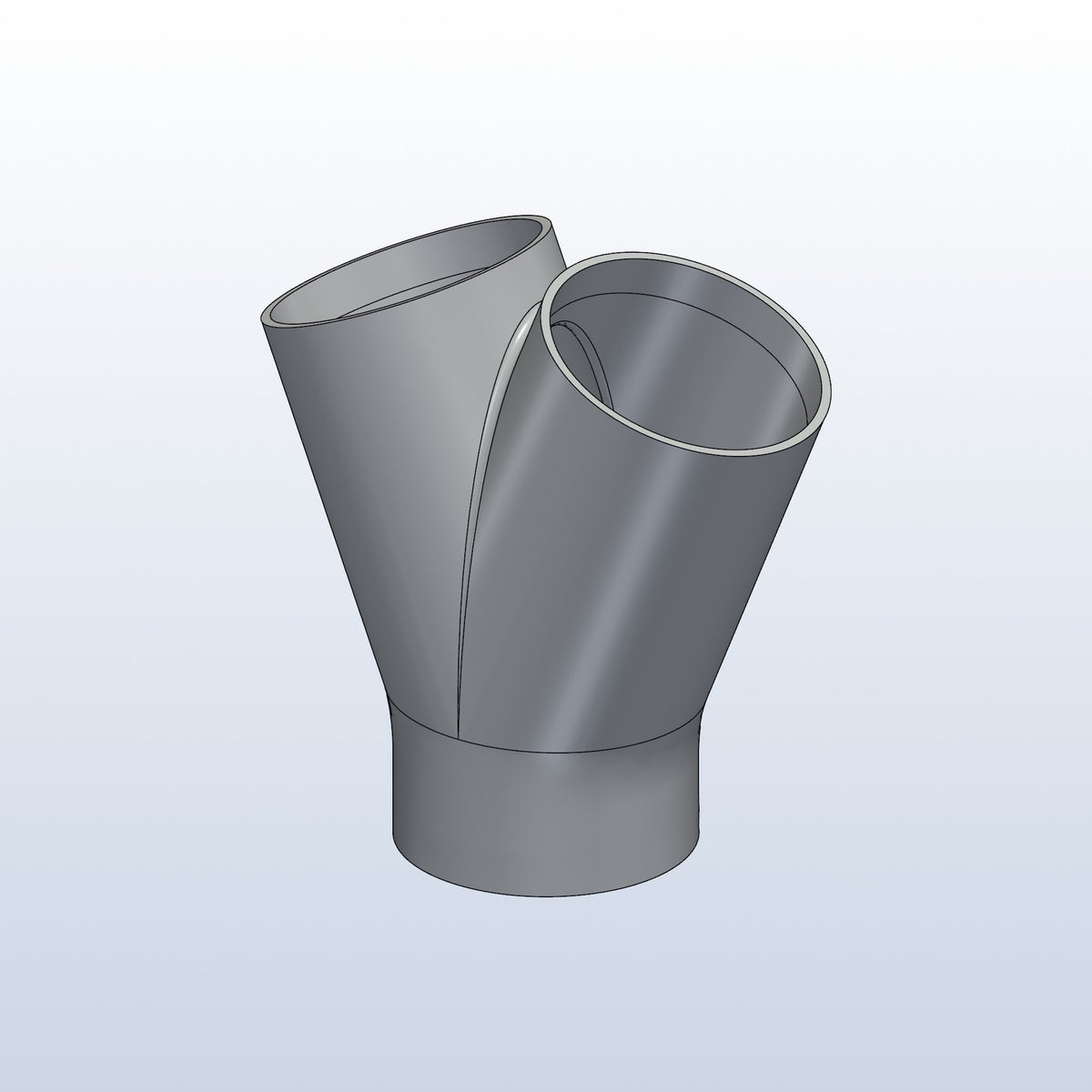

• 2 x 2in into 2in: 4.08in wide x 4.13in tall x 2.01in deep

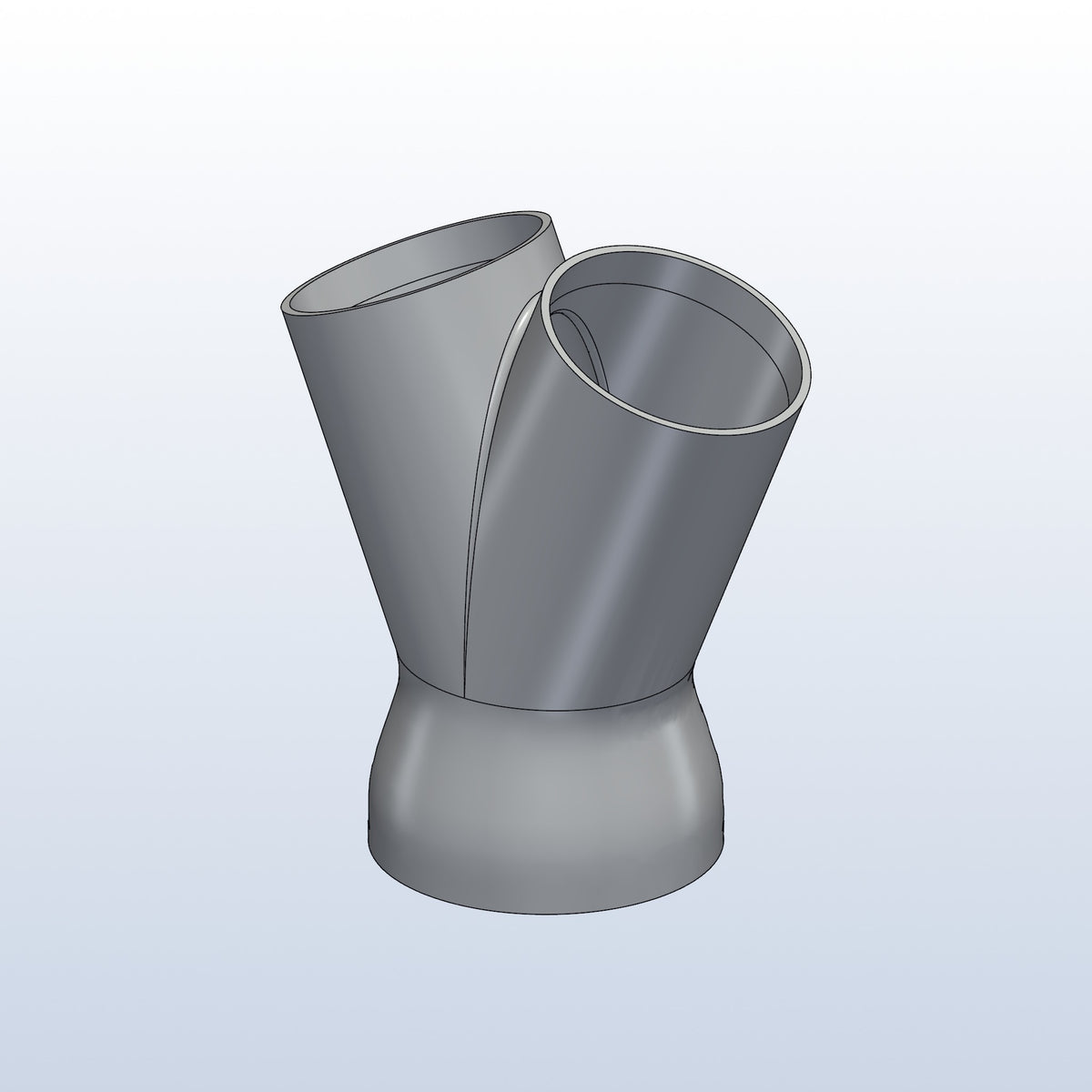

• 2 x 2in into 2.5in: 4.08in wide x 4.56in tall x 2.51in deep

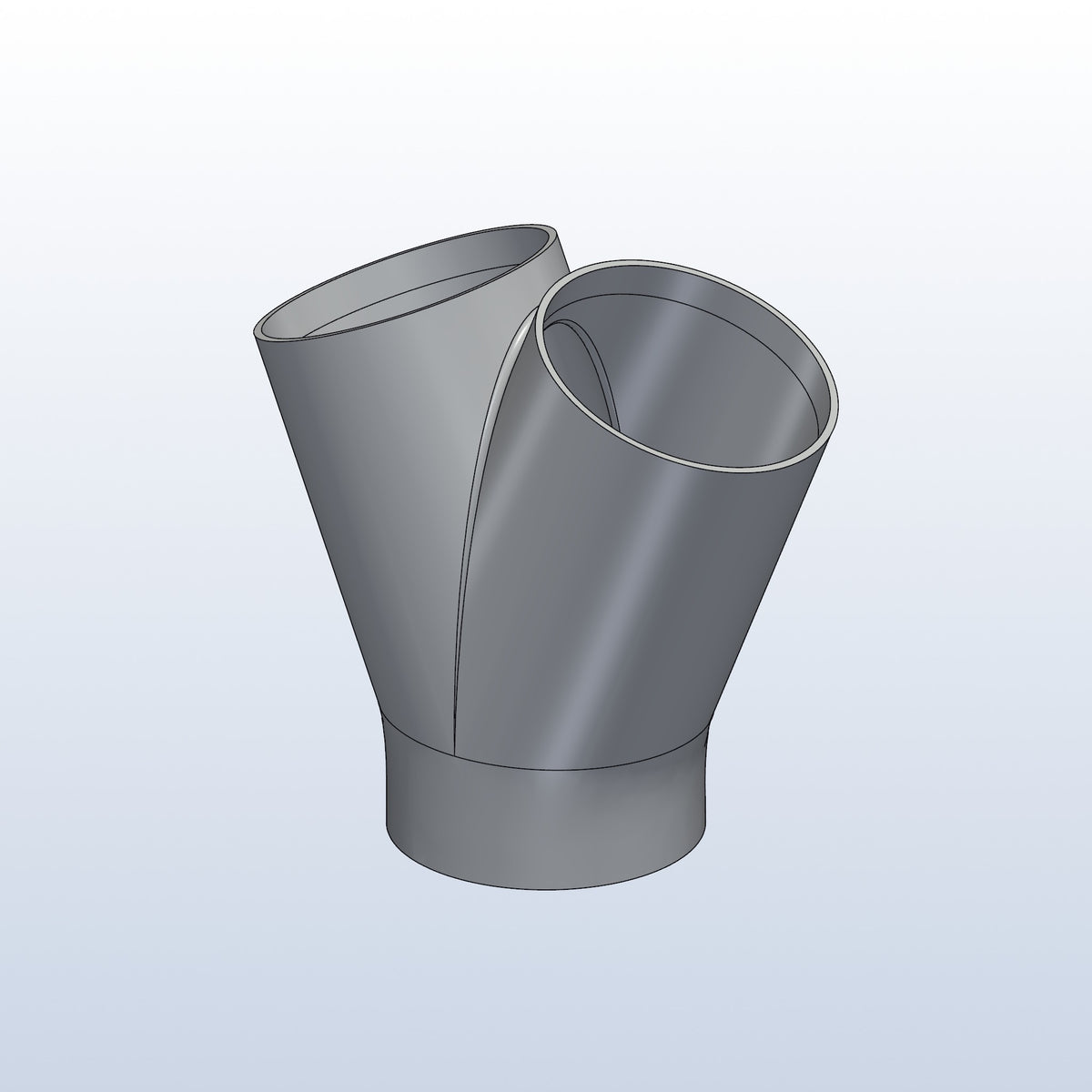

• 2 x 2.5in into 2.5in: 5.00in wide x 4.78in tall x 2.51in deep

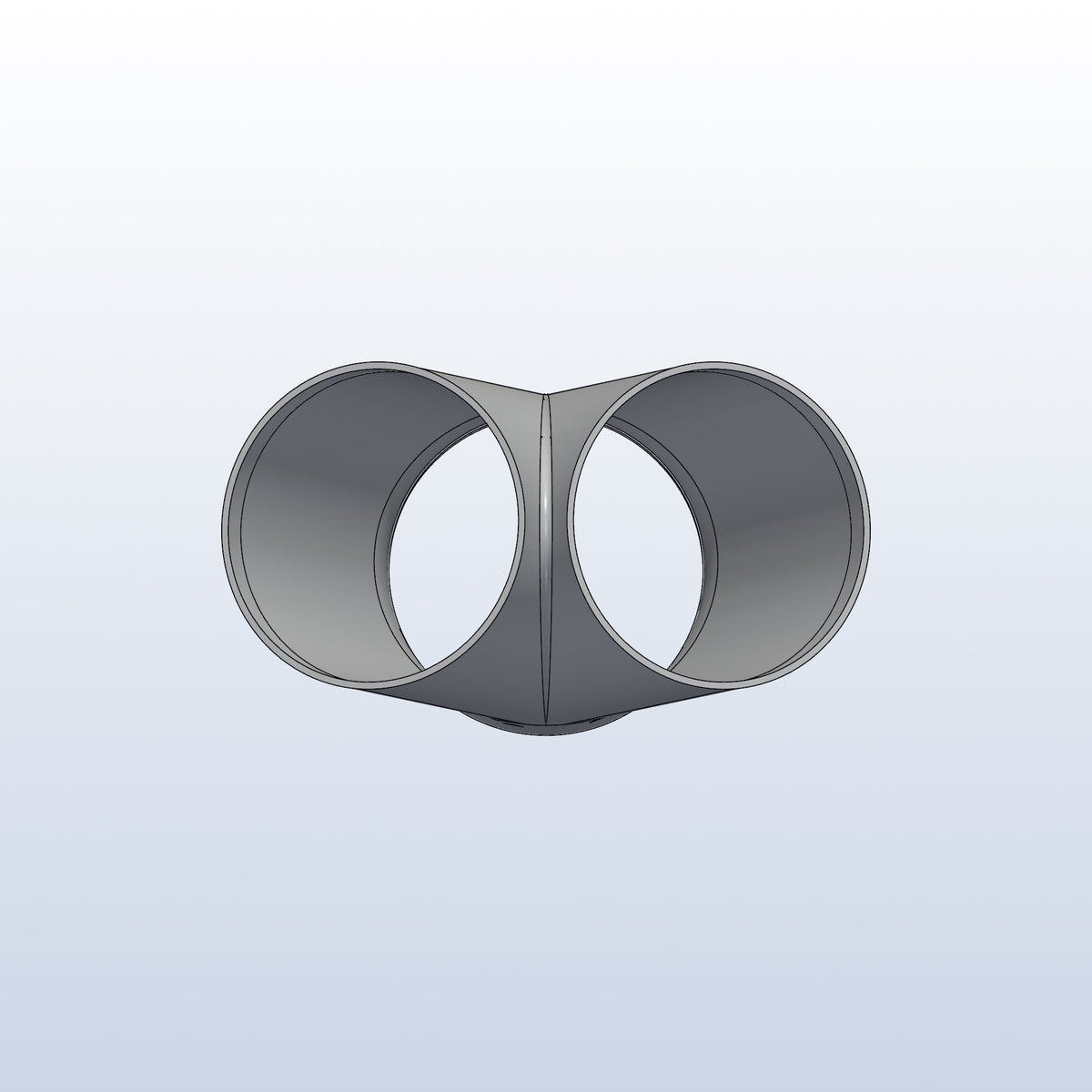

• 2 x 2.5in into 3in: 4.74in wide x 4.72in tall x 3.01in deep

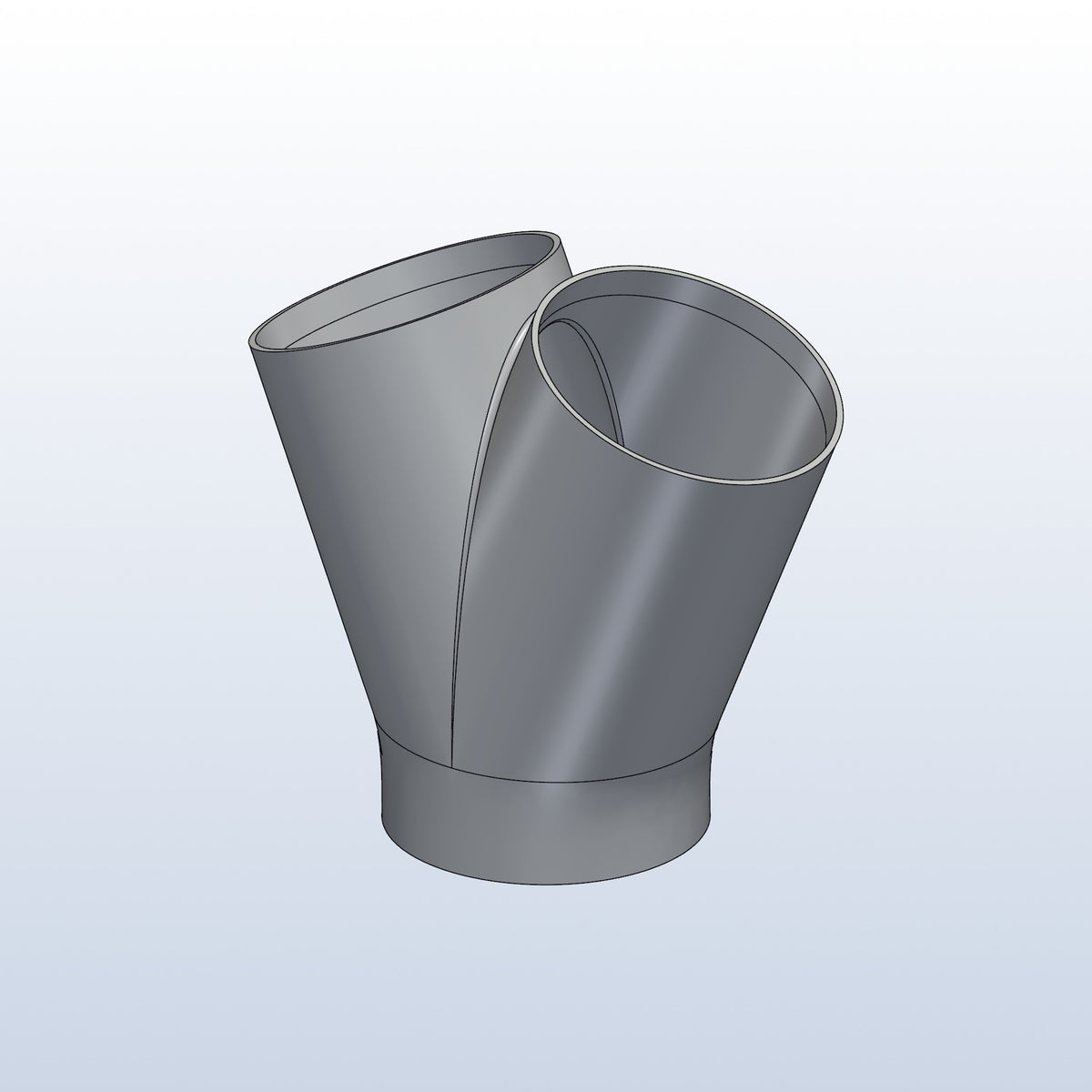

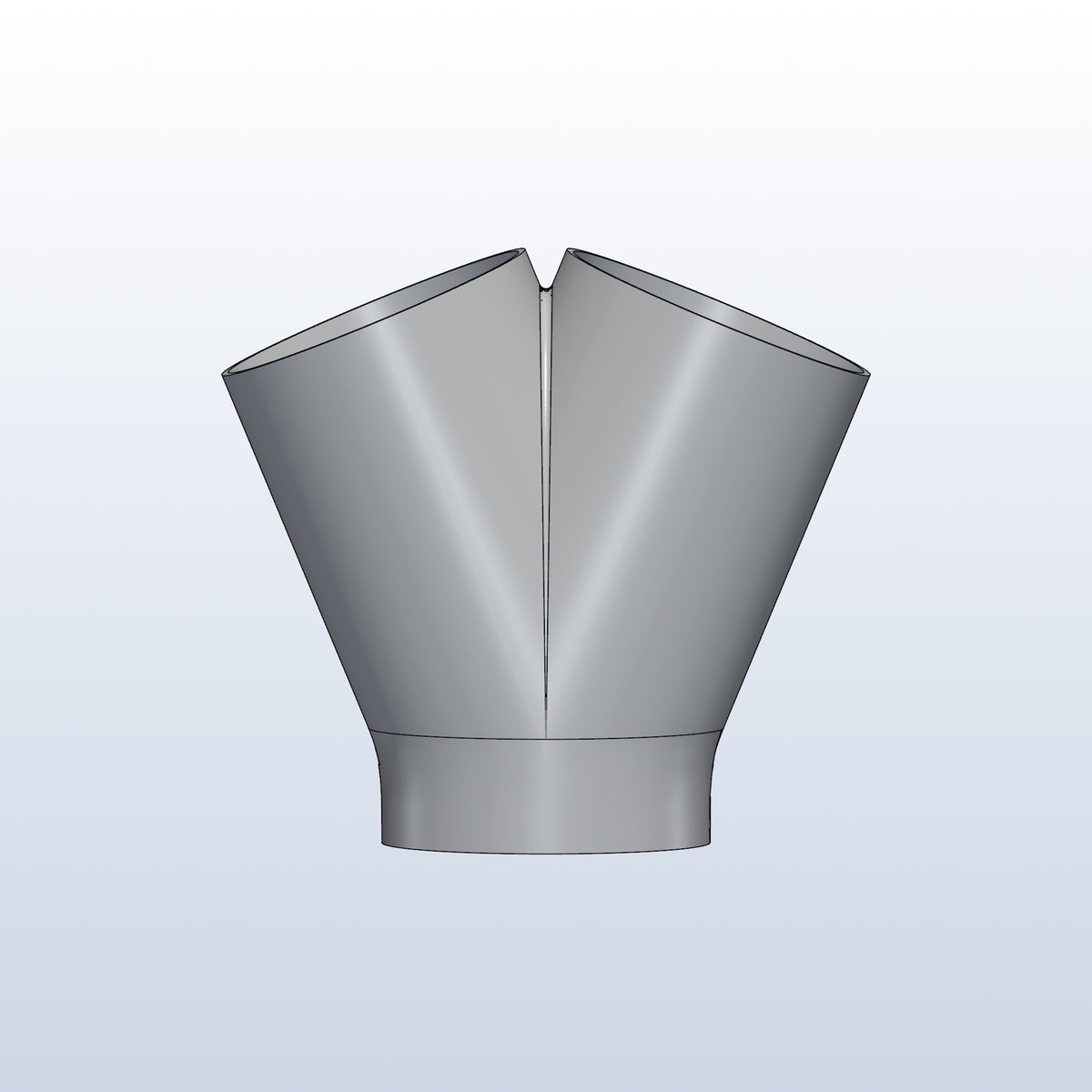

• 2 x 3in into 3in: 5.93in wide x 5.44in tall x 3.01in deep
• 2 x 3.5in into 3.5in: 6.85in wide x 6.09in tall x 3.52in deep

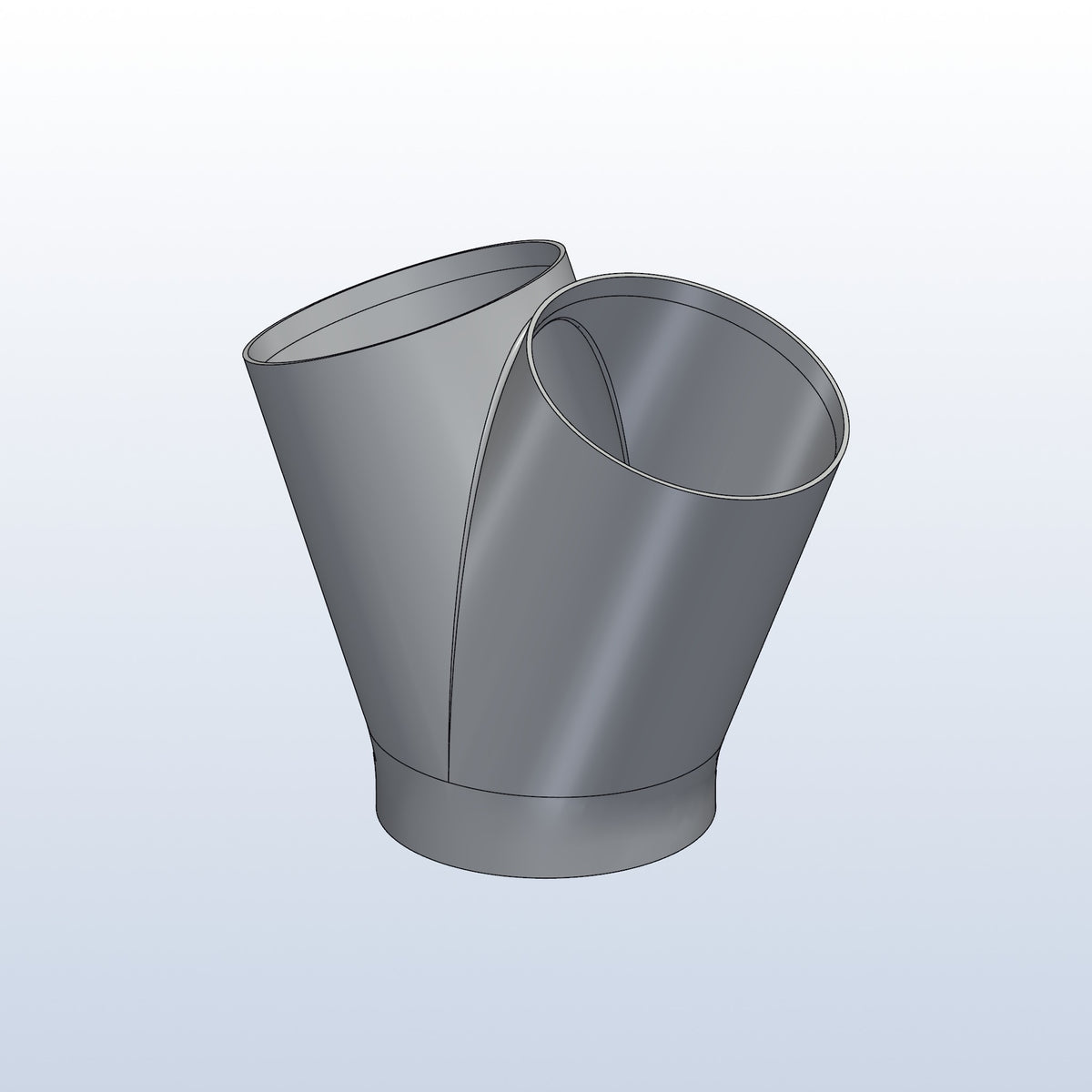

• 2 x 4in into 4in: 7.78in wide x 6.77in tall x 4.02in deep

What's in the box

One 2 into 1 merge in the size you pick.

Install notes

• Weld on part. Butt weld your tube to the two inlets and the outlet, matching each OD.
• The thickened ends are made for 0.065 wall (16 ga) tube.
• Professional welding recommended.

Related printed parts

Building a full system? See the printed cope junctions for laterals and T junctions, the 0.75D tight radius elbows for tight bends, the twin tip splitters for a 1 into 2 split, and the full 3D printed stainless exhaust parts collection.

Buy the STEP file, $11

Want to print it yourself? Pick STEP file under Format and you get the same 3D model we send to our printing partner, in the size you chose. The download link comes right after checkout and nothing ships. Upload it to any online metal 3D printing service for your own quote.

The file is yours to use however you want. It is designed for 316L stainless.

Parts printed by someone else are not covered by our warranty. Digital files are non-refundable.

Lead time

Printed to order. Allow about 4 weeks before it ships.

For off-road and competition use. Buyer is responsible for following all local exhaust and noise laws.

Designed by Brockett Built in central Illinois. Printed by an outside metal printing partner.
